Dove prisms are reflective prisms that are used to invert images. A truncated right-angle prism is used to build dove prisms.
Roof prisms are commonly used in optical equipment like digital optoelectric products, imaging equipment, fingerprint systems, medical devices, precise digital control machinery and other optical fields, common science educational equipment, optical communication, etc.

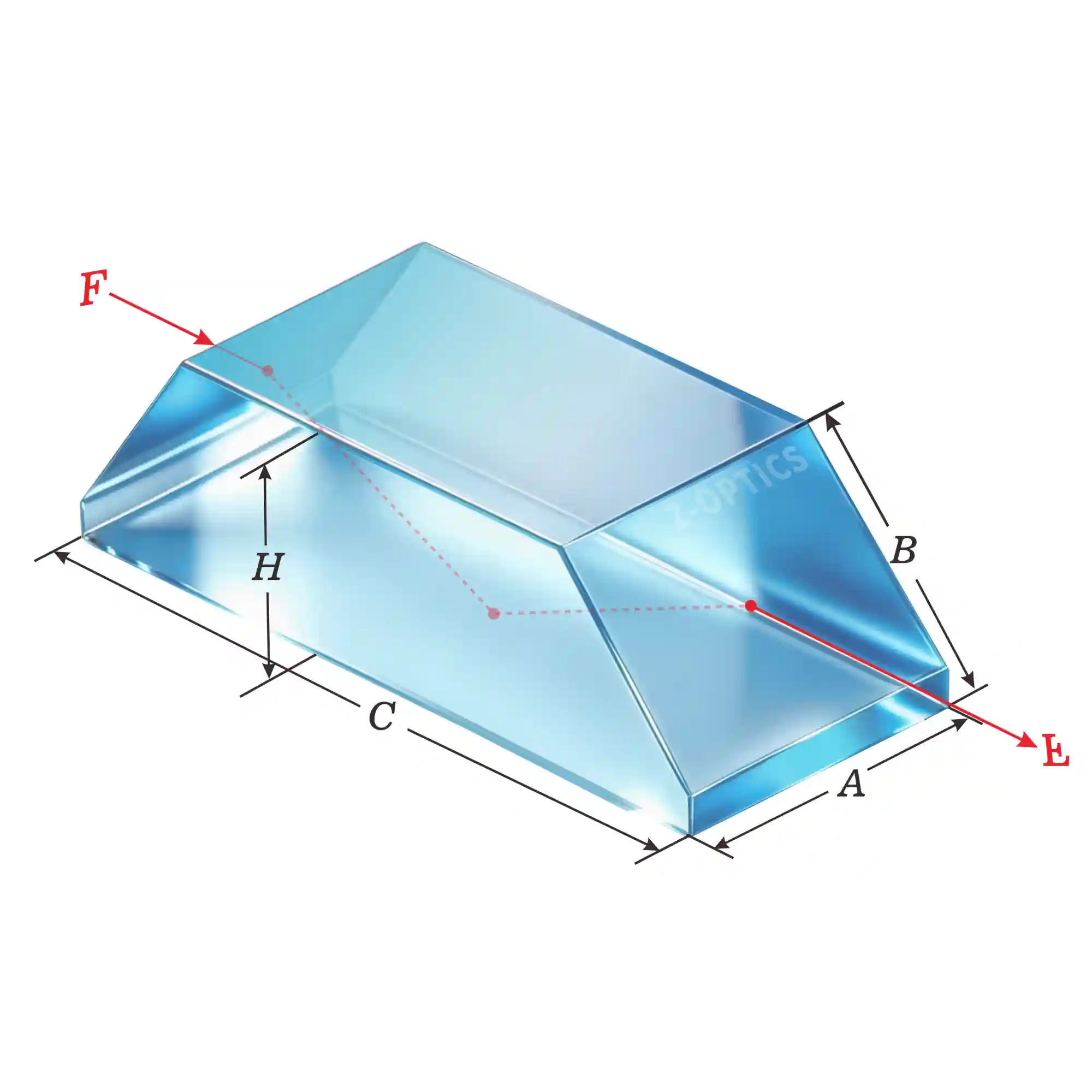

Dove Prism
H-K9L Prism
H-K9L Dove Prism
| Part no | A (mm) | B (mm) | C (mm) | H (mm) |
| PRS5050-071-211-05 | 5.0 | 7.1 | 21.1 | 5.0 |
| PRS5100-141-423-10 | 10.0 | 14.1 | 42.3 | 10.0 |
| PRS5150-212-634-15 | 15.0 | 21.2 | 63.4 | 15.0 |
| PRS5200-283-800-20 | 20.0 | 28.3 | 80.0 | 20.0 |
Specifications
- Material: H-K9L
- Size Tolerance: +0.0/-0.2mm
- Surface Figure: λ/4@632.8nm
- Angle Tolerance: +/-3 min.
- Chamfer: <0.25mmx45⁰
