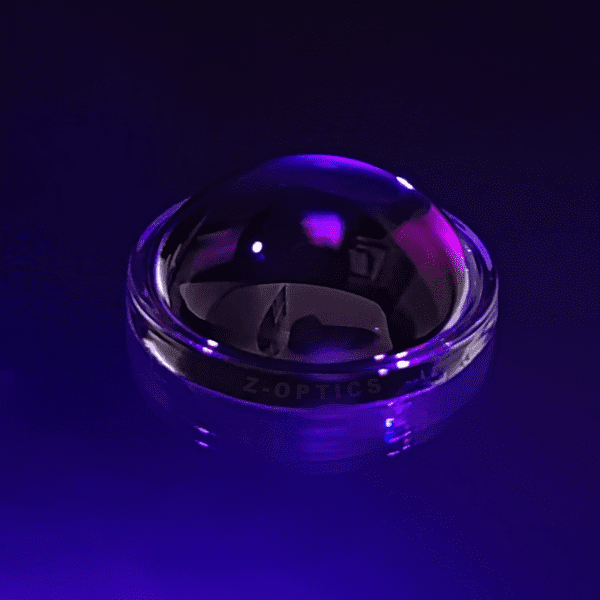

Aspheric Lens

Aspheric Lens

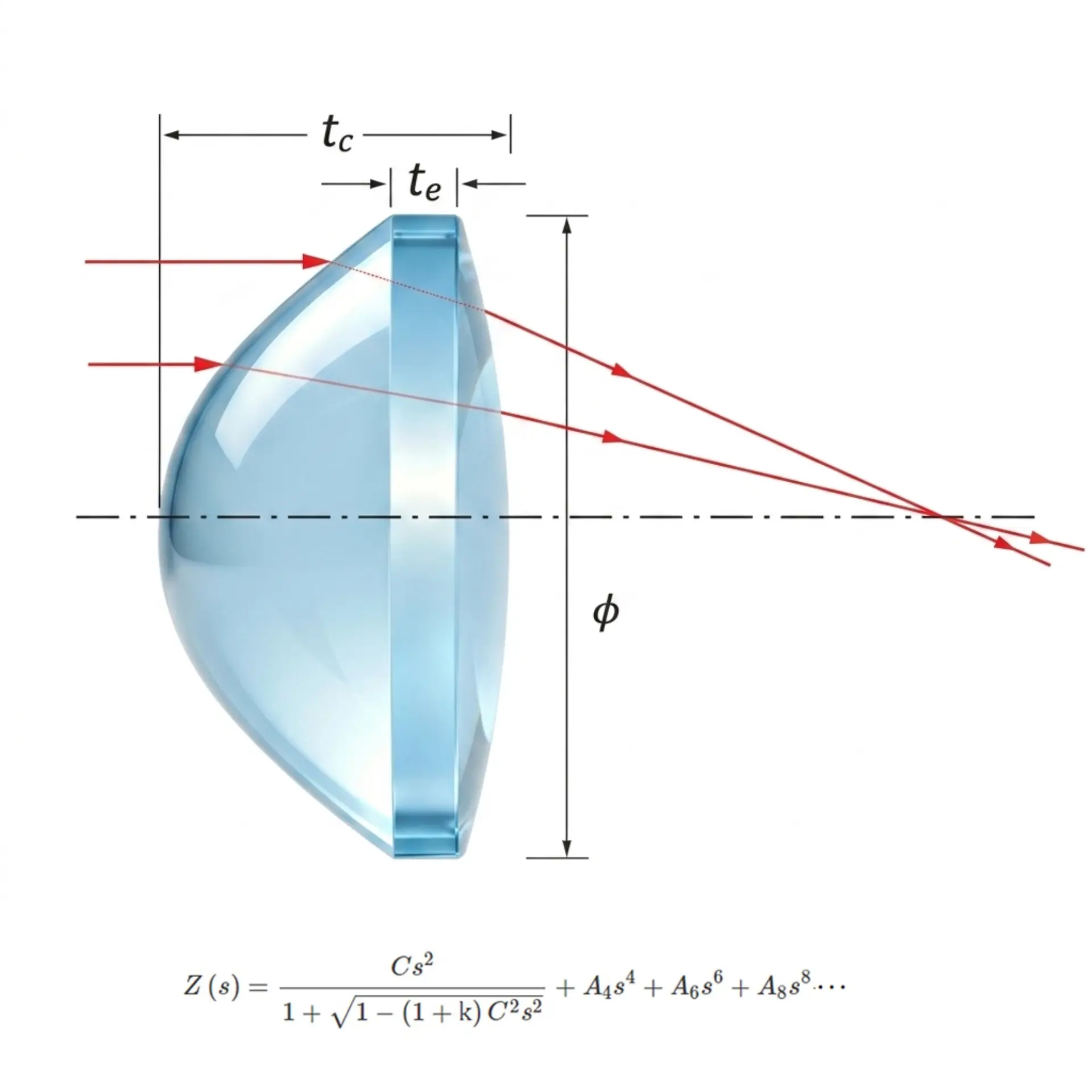

An Aspheric Lens is one whose surface profiles do not resemble those of a sphere or cylinder.
In comparison to a basic lens, Aspherical Lens can reduce or eliminate spherical aberration and also other optical distortions such as astigmatism.

Main Applications of Our Aspherical Lens:
– Collimator or condenser of the light source.
– Collimator of laser.
– Coupling lens to focus laser into an optical fiber.
– Imaging

Download Datasheet for more Lens

Categories: Lenses, Optical Products Tags: Advanced Lens Technology, Aspheric Lens, Aspherical Design, custom optics, High-Performance Lenses, Lens Manufacturing Expertise, Optical Components, Optical Solutions, Precision Optics, Premium Quality Optics, Shangrao Manufacturer, Spherical Aberration Correction

Glass Aspheric Lens for LASER

Part no	ϕ (mm)	f (mm)	NA	Tc (mm)	working dist(mm)	CA (mm)	Coating
LENA018-R91-23	1.97	0.91		2.31		1.77
LENA025-R91-09	2.50	0.91	0.45	0.88	0.45	0.84	1550
LENA025-1R4-07	2.50	1.40	0.52	0.74	1.06	1.44	518
LENA028-05-19	2.80	5.00	0.20	1.95	4.77	2.60	AR@400-700
LENA030-02-20	3.00	2.00	0.50	2.00	1.09	2.00	780
LENA030-03-20	3.00	3.00	0.30	2.00	3.27	2.65	AR@400-700
LENA030-3R7-15	3.00	3.77	0.33	1.50	2.99	2.50	635
LENA030-3R7-20	3.00	3.77		2.00
LENA030-3R8-15	3.00	3.80	0.30	1.50	2.80	2.50	AR@400-700
LENA030-4R5-18	3.00	4.50	0.30	1.79	3.46	2.70	633
LENA030-05-15	3.00	5.00	0.25	1.53	4.03	2.60	915
LENA030-06-15	3.00	6.00	0.22	1.50	5.20	0.27	635
LENA030-06-15	3.00	6.00	0.22	1.50	5.20	2.40	AR@400-700
LENA030-06-15	3.00	6.00		1.50			633
LENA030-6R2-35	3.00	6.20		3.50			633
LENA036-6R2-35	3.60	6.20		3.50
LENA038-1R2-13	3.75	1.18	0.4/0.16	1.30	1.1/3.77	1.30	1550
LENA040-04-20	4.00	4.00	0.4/0.16	2.00	2.92	3.20	405
LENA040-7R2-22	4.00	7.20	0.21	2.20	5.81	3.50	AR@635nm
LENA040-7R2-22	4.00	7.20		2.20			635
LENA045-2R8-22	4.50	2.75	0.64	2.24	1.50	3.60	830
LENA045-08-20	4.50	8.00	0.22	2.00	6.73	3.50	915
LENA047-6R2-35	4.70	6.20	0.25	3.50	3.96	4.10	AR@400-700
LENA047-08-29	4.70	8.00	0.25	2.90	5.86	4.20	AR@400-700
LENA047-08-29	4.70	8.00		2.90			530
LENA047-6R2-35	4.70	6.20		3.50			633
LENA050-6R2-35	5.00	6.20	0.27	3.50	3.96	4.20	AR@400-700
LENA050-10-20	5.00	10.00	0.28	2.00	8.43	5.00	AR@400-700
LENA050-04-30	5.00	4.05		3.00			445
LENA055-8R8-24	5.50	8.80	0.25	2.40	7.30	4.60	635
LENA056-04-28	5.60	4.00	0.55	2.80	2.76	5.60	AR@400-700
LENA060-3R4-25	6.00	3.35	0.72	2.50	1.96	5.00	830
LENA060-04-28	6.00	4.00	0.55	2.80	2.76	5.60	AR@400-700
LENA060-4R5-28	6.00	4.50	0.48	2.80	2.72	5.20	AR@400-700
LENA060-08-23	6.00	8.00	0.26	2.30	6.55	5.80	AR@400-700
LENA060-08-20	6.00	8.00		2.00			530
LENA060-10-23	6.00	10.00	0.28	2.25	8.43	5.20	AR@400-700
LENA060-10-20	6.00	10.00		2.00			635
LENA060-10-20	6.00	10.00		2.00			520
LENA060-12-20	6.00	12.00	0.18	2.00	10.74	5.60	AR@400-700

LENA060-12-25	6.00	12.00		2.50			532
LENA060-12-20	6.00	12.00		2.00			530
LENA060-15-21	6.00	15.00	0.15	2.10	13.64	5.60	AR@400-700
LENA060-15-21	6.00	15.00		2.10
LENA062-7R5-25	6.17	7.50		2.45
LENA063-04-31	6.33	4.05	0.63	3.10	2.80	5.20	445
LENA063-04-30	6.33	4.05		3.00			445
LENA064-08-20	6.35	8.00		2.00			635
LENA064-10-23	6.35	10.00	0.28	2.25	8.43	5.60	AR@400-700
LENA064-10-30	6.35	10.00	0.27	3.00	8.26	5.40	786.5
LENA065-8R9-24	6.50	8.90	0.30	2.36	7.55	5.30	635
LENA065-12-24	6.50	12.00	0.21	2.36	10.55	5.00	635
LENA067-8R9-24	6.65	8.90	0.30	2.36	7.55	5.33	635
LENA070-08-23	7.00	8.00	0.20	2.30	5.67	6.50	AR@400-700
LENA070-12-24	7.00	12.00	0.21	2.36	10.55	5.00	635
LENA072-6R2-54	7.20	6.24	0.40	5.36	3.44	5.00	780
LENA075-7R5-23	7.50	7.50	0.20	2.30	7.00	6.80	AR@635nm
LENA080-11-26	8.00	11.00	0.18	2.60	9.86	7.60	AR@400-700
LENA080-11-26	8.00	11.00		2.60
LENA080-11R2-27	8.00	11.20	0.30	2.66	9.70	6.80	635
LENA080-22R6-24	8.00	22.62	0.15	2.35	21.28	7.00	532
LENA085-15-25	8.50	15.00		2.50			530
LENA095-24-24	9.50	24.06	0.16	2.35	22.77	7.80	785
LENA100-16R7-32	10.00	16.70	0.27	3.23	14.65	8.80	976
LENA100-19-31	10.00	19.00	0.23	3.14	17.00	8.80	915
LENA105-15R3-30	10.50	15.25	0.30	3.00	13.55	9.00	639
LENA150-11R3-70	15.00	11.25	0.62	7.00	6.84	13.50	587.6
LENA170-35-47	17.00	35.00	0.21	4.62	32.08	15.00	635
LENA200-47-40	20.00	47.00	0.15	3.95	14.50	19.00	AR@400-700

Glass Aspheric Lens for LED

Part Number

Part no	Inner ϕ (mm)	Outer ϕ (mm)	f (mm)	R	Tc (mm)	Te (mm)
LENA230-24R5-70	23		24.5		7	1.51
LENA239-14-105	23.9	22.5	14		10.5	2.1
LENA250-15-110	25		15		11
LENA250-35-68	25		35		6.8
LENA254-19R8-100	25.4		19.76		10	1.58
LENA254-19R7-100	25.4		19.76		10	1.58
LENA260-11R7-134	26		11.778	-65	13.4	2.66
LENA260-16R9-102	26		16.89	27.110	10.15	1.54
LENA260-16R8-115	26		16.89	27.107	11.5	1.54
LENA260-20R9-150	26		20.95	-46	15	3.05
LENA260-31R4-65	26		31.434		6.47	1.52
LENA270-16R6-127	27		16.68	-38	12.7	2.07
LENA275-16R5-102	27.5	25	16.5		10.2	2.7
LENA280-20-94	28	25	20		9.4	2.2
LENA280-28-73	28	25	28		7.3	2
LENA290-17R3-140	29		17.28	-35	13.95	1
LENA291-31R6-84	29.1		31.6		8.4	1.4
LENA298-23-115	29.8		23		11.5
LENA298-45-69	29.8		45		6.9
LENA300-25-98	30	27.5	25		9.8	2.6
LENA300-52R3-75	30		52.395		7.5	3.24
LENA300-90R2-32	30		90.24		3.21	1.47
LENA310-20R6-149	31		20.58	-43.350	14.88	2.38
LENA317-27R8-145	31.67		27.75	-42.842	14.5	2.09
LENA316-27R7-145	31.67		27.75	-43.35	14.5	2.09
LENA320-18R5-130	32		18.49	-60	13	2.23
LENA320-21-78	32	24	21		7.8	2.4
LENA320-23-140	32	29.5	23		14	2
LENA320-145	32	29			14.5	1.5
LENA328-90R7-40	32.8		90.741		4	2.02
LENA328-96R9-40	32.8		96.939		4	2.02
LENA330-53R9-54	33		53.912		5.49	2
LENA335-22-125	33.5	30.5	22		12.5	3.5
LENA340-11-210	34	31.5	11		21	3
LENA340-24R3-165	34		24.26	-55.000	16.5	1.82
LENA340-24R2-165	34		24.26	-60	16.5	1.82
LENA340-30R4-165	34		30.49	-55	16.5	1.82
LENA343-23-118	34.3	30	23		11.8	2.8
LENA348-55-80	34.8		55		8
LENA350-17-160	35	32	17		16	3

LENA360-24R5-195	36		24.57	54.36	19.5	2.5
LENA360-24R6-195	36		24.57		19.5	2.5
LENA360-27R7-195	36		27.71		19.5	2.5
LENA360-28R2-195	36		28.27		19.5	1.98
LENA360-37R6-112	36		37.6	93.3	11.2	2.16
LENA378-16-195	37.8	35.8	16		19.5	2.5
LENA378-35-100	37.8	32	35		10	2.7
LENA380-49R4-122	38		49.38		12.15	1.75
LENA400-22-160	40	36	22		16	2.5
LENA400-39R1-112	40		39.12		11.2	2.46
LENA400-65-85	40		65		8.5
LENA410-203-65	41		203.98	80	6.5	1.91
LENA410-204-65	41		203.98		6.5	1.91
LENA420-34R8-174	42		34.76	134.417	17.35	3
LENA420-34R7-173	42		34.76		17.35	3
LENA420-43-130	42		43		13	2.29
LENA430-28-145	43	36	28		14.5	2.8
LENA435-35-130	43.5	39.5	35		13	2
LENA440-23-190	44	39.5	23		19	3
LENA440-46-115	44		46	134.417	11.5	2.09
LENA440-62R4-85	44		62.38		8.5	2.08
LENA450-49R9-130	45		49.92		13	1.9
LENA450-50-120	45		50.06	70.324	12	2.18
LENA450-50R1-120	45		50.06		12	2.18
LENA460-24-178	46	39	24		17.8	3
LENA480-24R5-167	48		24.46	70.324	16.72	1.97
LENA480-24R4-167	48		24.46		16.72	1.97
LENA480-31-150	48		31.03	80	15	2.04
LENA480-31R5-166	48		31.5	73.429	16.64	2
LENA480-35R6-152	48		35.6	73.95	15.2	1.92
LENA480-45R3-130	48		45.3		13	2.51
LENA480-56R3-125	48		56.28		12.47	3.34
LENA500-33-190	50	46	33		19	3
LENA500-35-172	50	46	35		17.2	2.7
LENA500-36R6-167	50		36.64	90	16.73	2.27
LENA500-41R9-165	50		41.89		16.5	2
LENA500-42-155	50	46	42		15.5	2.9
LENA500-48R4-191	50		48.4		19.05	2
LENA500-70-201	50		70	-132.5	20.14	2.98
LENA500-144-80	50		144.88	-523.69	8	3.3

LENA500-146-60.	50		146.3		6.03	2
LENA506-30-220	50.6	48	30		22	3.2
LENA510-31-190	51	46	31		19	2.8
LENA510-75-125	51		75		12.5	3
LENA510-225	51	47			22.5	3.5
LENA515-33-185	51.5	45.5	33		18.5	2.6
LENA520-26-248	52	49	26		24.8	2.5
LENA525-36-200	52.5	48	36		20	2.8
LENA530-37-200	53	48	37		20	3.5
LENA530-54R7-142	53		54.737	88.131	14.2	2
LENA636-59R3-130	53		59.34	78.68	13	2.05
LENA545-34-210	54.5	49	34		21	2.6
LENA550-30-270	55		30		27	7.5
LENA550-60-178	55		60		17.8	5
LENA560-63R2-140	56		63.21	108.219	14	2.44
LENA570-30-270	57		30		27	5.5
LENA570-35-232	57	53.8	35		23.2	3.2
LENA590-33-195	59	47	33		19.5	3.5
LENA590-48R1-290	59		48.1	-87	29	2
LENA590-60-178	59		60		17.8	3.5
LENA600-40-245	60	55.8	40		24.5	3.5
LENA605-52-205	60.5	56.3	52		20.5	3
LENA610-25-300	61	54	25		30	4
LENA630-100-130	63	59	100		13	3
LENA630-145-225	63		145		22.5	15
LENA-423-120	63.6		423.95	352	12	12.12
LENA637-37-270	63.7	59.3	37		27	3.3
LENA639-55-190	63.9	59.9	55		19	3
LENA639-65-178	63.9	59.9	65		17.8	3
LENA640-40-250	64	59	40		25	3
LENA650-42-250	65	59	42		25	3.5
LENA660-47-240	66	61.5	47		24	3
LENA662-42-285	66.2	61.2	42		28.5	4
LENA665-48-250	66.5	62.4	48		25	3.5
LENA668-52-247	66.8	62	52		24.7	3.2
LENA690-55-255	69	64	55		25.5	3
LENA690-35-295	69	60.5	35		29.5	3.2
LENA693-205	69.3	63.1			20.5	5.3
LENA700-145-225	70		145		22.5	13
LENA710-47-280	71	67	47		28	3

LENA720-52R4-288	72		52.48		28.8	3.38
LENA720-60-265	72	68	60		26.5	3.8
LENA738-73-242	73.8	69.9	73		24.2	4.1
LENA740-65-250	74	71	65		25	3.5
LENA740-58-275	74	70	58		27.5	4
LENA740-70-250	74	70.3	70		25	3.5
LENA750-70-236	75	70	70		23.6	4.5
LENA750-83R8-360	75		83.75	-88.636	36	13.44
LENA750-145-225	75		145		22.5	11.5
LENA760-53-300	76	69.5	53		30	4
LENA776-42-330	77.6	71	42		33	3
LENA780-50-305	78	71.1	50		30.5	4
LENA780-53-300	78	73	53		30	5
LENA782-50-329	78.2	73	50		32.9	4
LENA782-51-275	78.2	66.7	51		27.5	4
LENA790-45-340	79	74.2	45		34	4
LENA798-145-225	79.8		145		22.5	10
LENA800-32-400	80	72	32		40	4.5
LENA800-76R2-258	80		76.28	139.998	25.87	4.1
LENA800-115-174	80		115.97	117.14	17.49	4
LENA810-55-275	81	74	55		27.5	3.5
LENA830-92R4-215	83		92.49	113.84	21.5	2.04
LENA850-145-225	85		145		22.5	8.5
LENA880-145-225	88		145		22.5	7.5
LENA890-65-300	89	74	65		30	5.7
LENA890-161-177	89		161.34	-231.5	17.72	2.9
LENA898-145-225	89.8		145		22.5	7
LENA900-102-222	90		102.79	600	22.2	2.92
LENA910-145-225	91		145		22.5	6
LENA920-69R7-314	92		69.66		31.39	2
LENA930-145-225	93		145		22.5	5.5
LENA950-145-225	95		145		22.5	4.5
LENA970-180-153	97		180.33	353	15.34	2.91
LENA980-145-225	98		145		22.5	3
LENA1000-126-217	100		126.76	270	21.72	2.46
LENA1000-135-220	100	92	135		22	4
LENA1040-110-300	104	100	110		30	4.5
LENA1080-145-220	108	101	145		22	2.2
LENA1120-151-236	112		151.94	1100	23.63	3

LENA1120-176-208	112		176.43		20.8	2.99
LENA1280-293-175	128		293		17.59	4
LENA1300-211-243	130		211.38		24.3	5.45
LENA1300-355-134	130		355.06	740	13.43	2.5
LENA-41X39-188	41*38.6	38.2*34.3			18.8	2
LENA-41X39-229	41*38.6	38.1*35.6			22.9	2
LENA-90X69-175	90*68.5	83.5*61			17.5	3.5

Plastic Aspherical Lens for LED

Plastic Aspheric Lens for LED

Part Number	Outer ϕ (mm)	Inner ϕ (mm)	f (mm)	Tc (mm)	Te (mm)	Surface Type
LENA070-011-20-PMMA-1	7	/	11	2	/	Type 1
LENA080-012-23-PMMA-1	8	/	12	2.3	/	Type 1
LENA085-011-22-PMMA-1	8.5	/	11	2.2	/	Type 1
LENA090-006-27-PMMA-1	9	7	6	2.7	1.0	Type 1
LENA100-014-27-PMMA-1	10	/	14	2.7	/	Type 1
LENA100-010-30-PMMA-1	10	9	10	3	1	Type 1
LENA107-012-27-PMMA-1	10.7	9.9	12	2.7	0.8	Type 1
LENA110-013-25-PMMA-1	11	8.6	13	2.5	1.0	Type 1
LENA120-009-49-PMMA-1	12	8.9	9	4.85	1.5	Type 1
LENA130-025-23-PMMA-1	13	12	25	2.3	0.8	Type 1
LENA135-023-27-PMMA-1	13.5	12	23	2.65	1.0	Type 1
LENA145-027-27-PMMA-1	14.5	13	27	2.65	1.0	Type 1
LENA145-010-88-PMMA-1	14.5	/	10	8.8	/	Type 1
LENA150-033-25-PMMA-1	15	13.5	33	2.5	1.0	Type 1
LENA150-020-38-PMMA-1	15	14.5	20	3.75	1.0	Type 1
LENA160-023-37-PMMA-1	16	/	23	3.7	/	Type 1
LENA170-028-32-PMMA-1	17	16	28	3.2	0.8	Type 1
LENA175-015-42-PMMA-1	17.5	14	15	4.2	1.4	Type 1
LENA180-015-54-PMMA-1	18	14	15	5.4	1.85	Type 1
LENA193-033-32-PMMA-1	19.3	18	33	3.2	0.9	Type 1
LENA200-034-27-PMMA-1	20	14.5	34	2.66	1.0	Type 1
LENA208-022-73-PMMA-1	20.8	19.5	22	7.3	1.0	Type 1
LENA208-041-30-PMMA-1	20.8	17.8	41	3	1.0	Type 1
LENA250-050-46-PMMA-1*	25	/	50	4.6	/	Type 1
LENA26x19-008-139-PMMA	26*19	21*19	8	13.9	2.4	Type 1
LENA270-050-56-PMMA-1	27	25	50	5.57	1.1	Type 1
LENA287-045-54-PMMA-1	28.7	25.7	45	5.4	1.4	Type 1
LENA300-088-38-PMMA-1	30	/	88	3.8	/	Type 1
LENA310-027-125-PMMA-1	31	29.3	27	12.5	2.0	Type 1
LENA335-080-50-PMMA-1	33.5	/	80	5	/	Type 1
LENA337-032-133-PMMA-1	33.7	31.8	32	13.3	3.0	Type 1
LENA370-053-84-PMMA-1	37	35	53	8.4	2.5	Type 1

LENA76-010-23-PMMA-1	7.6	7.2	10	2.25	0.7	Type 1
LENA85-008-28-PMMA-1	8.5	7.8	7.5	2.8	1.0	Type 1
LENA100-006-30-PMMA-1	10	7.8	6	3	1.1	Type 1
LENA100-007-45-PMMA-1*	10	/	7	4.5	1.4	Type 1
LENA108-030-27-PMMA-1	10.8	9.5	30	2.7	0.73	Type 1
LENA110-024-20-PMMA-1	11	9.9	24	2	1.0	Type 1
LENA125-008-45-PMMA-1	12.5	11.4	8	4.5	1.2	Type 1
LENA125-010-37-PMMA-1	12.5	11	10	3.7	1.0	Type 1
LENA130-005-50-PMMA-1	13	10.9	5	5	1.0	Type 1
LENA130-009-52-PMMA-1*	13	/	9	5.2	1.6	Type 1
LENA140-012-38-PMMA-1	14	12	12	3.8	1.0	Type 1
LENA140-010-45-PMMA-1	14	13	10	4.5	0.9	Type 1
LENA150-009-56-PMMA-1	15	13.1	9	5.6	1.2	Type 1
LENA150-032-25-PMMA-1	15	14	32	2.5	1.0	Type 1
LENA157-012-49-PC	15.7	14.8	12	4.9	1.0	Type 1
LENA160-014-50-PMMA-1	16	14.8	14	5	1.2	Type 1
LENA160-020-65-PMMA-1*	16	/	20	6.5	3.0	Type 1
LENA160-00-77-PMMA-1	16	14.8	/	7.7	2.6	Type 1
LENA170-010-62-PMMA-1	17	15.8	10	6.2	1.4	Type 1
LENA180-018-68-PMMA-1*	18	/	18	6.8	2.5	Type 1
LENA180-018-84-PMMA-1	18	17	18	8.4	4.5	Type 1
LENA183-043-31-PMMA-1*	18.3	/	43	3.1	/	Type 1
LENA193-017-56-PMMA-1	19.3	17.6	17	5.6	1.5	Type 1
LENA193-00-56-PMMA-3	19.3	17.6	/	5.6	1.5	Type 3
LENA193-030-42-PMMA-1	19.3	17.6	30	4.2	1.5	Type 1
LENA193-00-42-PMMA-2	19.3	17.6	/	4.2	1.5	Type 2
LENA200-017-57-PMMA-1	20	17.4	16.5	5.7	1.5	Type 1
LENA200-00-56-PMMA-7	20	17.4	/	5.6	1.5	Type 7
LENA200-00-56-PMMA-3	20	17.4	/	5.6	1.5	Type 3
LENA205-012-80-PMMA-1	20.5	18.5	12	8	1.85	Type 1
LENA210-025-48-PMMA-1	21	18	25	4.8	1.6	Type 1
LENA225-016-80-PMMA-1	22.5	20.5	16	8	2.0	Type 1
LENA230-016-80-PMMA-1	23	21	16	8	1.7	Type 1
LENA230-00-80-PMMA-5	23	21	/	8	1.7	Type 5
LENA230-00-80-PMMA-4	23	21	/	8	1.7	Type 4
LENA230-00-80-PMMA-2	23	21	/	8	1.7	Type 2
LENA230-00-80-PMMA-3	23	21	/	8	1.7	Type 3
LENA230-00-80-PMMA-6	23	21	/	8	1.7	Type 6
LENA230-00-80-PMMA-7	23	21	/	8	1.7	Type 7

LENA238-026-59-PMMA-1	23.8	21	26	5.9	1.7	Type 1
LENA250-051-45-PMMA-1	25	23	51	4.5	1.8	Type 1
LENA250-018-104-PMMA-1*	25	/	18	10.4	3.2	Type 1
LENA269-018-108-PMMA-1	26.9	17.8	18	10.8	2.3	Type 1
LENA277-019-86-PMMA-1	27.7	25.8	19	8.6	1.4	Type 1
LENA277-029-63-PMMA-1	27.7	25.8	29	6.3	1.4	Type 1
LENA277-047-48-PMMA-1	27.7	25	47	4.75	1.45	Type 1
LENA277-00-86-PMMA-2	27.7	25.8	/	8.6	1.4	Type 2
LENA277-00-86-PMMA-7	27.7	25.8	/	8.6	1.4	Type 7
LENA280-090-38-PMMA-1*	28	/	90	3.8	/	Type 1
LENA285-015-82-PMMA-1	28.5	20.6	15	8.2	2.0	Type 1
LENA290-027-85-PMMA-1	29	27.5	27	8.5	1.5	Type 1
LENA290-00-85-PMMA-2	29	27.5	/	8.5	1.5	Type 2
LENA300-025-81-PMMA-1	30	26.5	25	8.1	1.6	Type 1
LENA310-00-102-PMMA-2	31	28.5	/	10.2	1.0	Type 2
LENA330-037-76-PMMA-1	33	29.5	36.5	7.6	1.6	Type 1
LENA336-00-103-PMMA-3	33.6	31	/	10.3	1.45	Type 3
LENA350-038-98-PMMA-1	35	33	38	9.75	2.0	Type 1
LENA350-028-113-PMMA-1	35	32	28	11.3	2.1	Type 1
LENA360-040-98-PMMA-1	36	33	40	9.8	2.1	Type 1
LENA380-032-100-PMMA-1	38	33	32	10	2.3	Type 1
LENA380-00-100-PMMA-3	38	33	/	10	2.3	Type 3
LENA400-023-153-PMMA-1	40	35.3	23	15.3	2.5	Type 1
LENA448-063-100-PMMA-1	44.8	41.8	63	10	1.15	Type 1
LENA450-036-143-PMMA-1	45	42	36	14.3	2.1	Type 1
LENA483-00-100-PMMA-3	48.3	38	/	10	1.5	Type 3
LENA484-081-100-PMMA-1*	48.35	/	81	10	2.0	Type 1
LENA484-00-100-PMMA-2*	48.35	/	/	10	2.0	Type 2
LENA484-00-100-PMMA-3*	48.35	/	/	10	2.0	Type 3
LENA493-036-146-PMMA-1	49.3	44	36	14.6	2.0	Type 1
LENA600-045-192-PMMA-1	60	57.7	45	19.2	2.3	Type 1
LENA600-085-122-PMMA-1*	60	/	85	12.2	2.1	Type 1
LENA600-037-260-PMMA-1*	60	/	37	26	3.0	Type 1
LENA640-052-200-PMMA-1	64	58.5	52	20	3.2	Type 1
LENA680-220-100-PMMA-1	68	60.5	220	10	3.2	Type 1
LENA725-00-222-PMMA-2	72.5	64.2	/	22.2	3.0	Type 2
