The right-angle prism has a basic 45-degree right triangle geometry and is one of the most commonly used prisms for redirecting light and rotating images. It can be used to deviate a light path by 90° or 180°, depending on which surface is used as the input for the light source.

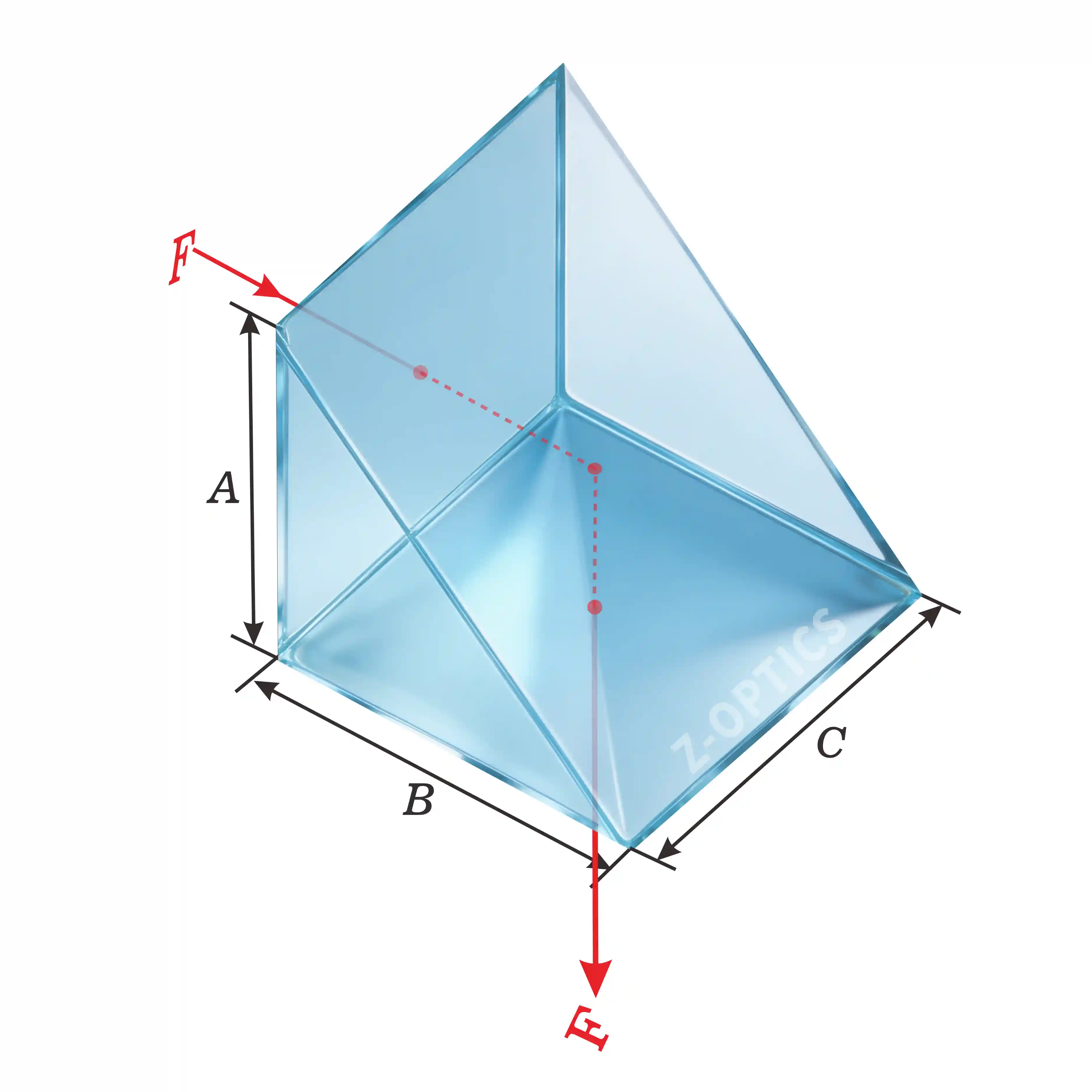

High Precision Right Angle Prism
K9 High Precision Right Angle Prism
K9 High Precision Right Angle Prism
|
Part no |
Coating on Leg |
Part no | Coating on Leg | A=B=C |
| PRS04-010-0 | PRS04-010-0 | 1.0 | ||
| PRS04-020-0 | PRS04-020-0 | 2.0 | ||
| PRS04-050-2-VIS | VIS | PRS04-050-2-NIR | NIR | 5.0 |
| PRS04-063-2-VIS | VIS | PRS04-063-2-NIR | NIR | 6.3 |
| PRS04-080-2-VIS | VIS | PRS04-080-2-NIR | NIR | 8.0 |
| PRS04-100-2-VIS | VIS | PRS04-100-2-NIR | NIR | 10.0 |
| PRS04-125-2-VIS | VIS | PRS04-125-2-NIR | NIR | 12.5 |
| PRS04-150-2-VIS | VIS | PRS04-150-2-NIR | NIR | 15.0 |
| PRS04-200-2-VIS | VIS | PRS04-200-2-NIR | NIR | 20.0 |
| PRS04-250-2-VIS | VIS | PRS04-250-2-NIR | NIR | 25.0 |
| PRS04-300-2-VIS | VIS | PRS04-300-2-NIR | NIR | 30.0 |
| PRS04-400-2-VIS | VIS | PRS04-400-2-NIR | NIR | 40.0 |
| PRS04-500-2-VIS | VIS | PRS04-500-2-NIR | NIR |
50.0 |
| Part no | Coating on Hypotenuse | Part no | Coating on Hypotenuse | A=B=C |
| PRS04-050-4-VIS | VIS | PRS04-050-4-NIR | NIR | 5.0 |
| PRS04-063-4-VIS | VIS | PRS04-063-4-NIR | NIR | 6.3 |
| PRS04-080-4-VIS | VIS | PRS04-080-4-NIR | NIR | 8.0 |
| PRS04-100-4-VIS | VIS | PRS04-100-4-NIR | NIR | 10.0 |
| PRS04-125-4-VIS | VIS | PRS04-125-4-NIR | NIR | 12.5 |
| PRS04-150-4-VIS | VIS | PRS04-150-4-NIR | NIR | 15.0 |
| PRS04-200-4-VIS | VIS | PRS04-200-4-NIR | NIR | 20.0 |
| PRS04-250-4-VIS | VIS | PRS04-250-4-NIR | NIR | 25.0 |
| PRS04-300-4-VIS | VIS | PRS04-300-4-NIR | NIR | 30.0 |
| PRS04-400-4-VIS | VIS | PRS04-400-4-NIR | NIR | 40.0 |
| PRS04-500-4-VIS | VIS | PRS04-500-4-NIR | NIR | 50.0 |
SiO2 High Precision Right Angle Prism
| Part no | Coating | Part no | Coating | A=B=C |
| PRS04-050-0-FS | none | PRS04-050-2-UV-FS | Aluminum Coating on Hypotenuse and AR@UV on Legs | 5.0 |
| PRS04-063-0-FS | PRS04-063-2-UV-FS | 6.3 | ||
| PRS04-100-0-FS | PRS04-100-2-UV-FS | 10.0 | ||
| PRS04-125-0-FS | PRS04-125-2-UV-FS | 12.5 | ||
| PRS04-150-0-FS | PRS04-150-2-UV-FS | 15.0 | ||
| PRS04-200-0-FS | PRS04-200-2-UV-FS | 20.0 | ||
| PRS04-250-0-FS | PRS04-250-2-UV-FS | 25.0 |
Specifications
|
K9 High Precision |
SiO2 High Precision |
|
Material: H-K9L Size Tolerance: +0.0/-0.1mm Surface Figure: λ/10@632.8nm Surface Quality: 40-20 Angle Tolerance: +/-15sec. Chamfer: <0.25mmx45⁰ |
Material: Fused Silica Size Tolerance: +0.0/-0.1mm Surface Figure: λ/10@632.8nm Surface Quality: 40-20 Angle Tolerance: +/-15 sec. Chamfer: <0.25mmx45⁰ |
