The right-angle prism has a basic 45-degree right triangle geometry and is one of the most commonly used prisms for redirecting light and rotating images. It can be used to deviate a light path by 90° or 180°, depending on which surface is used as the input for the light source.

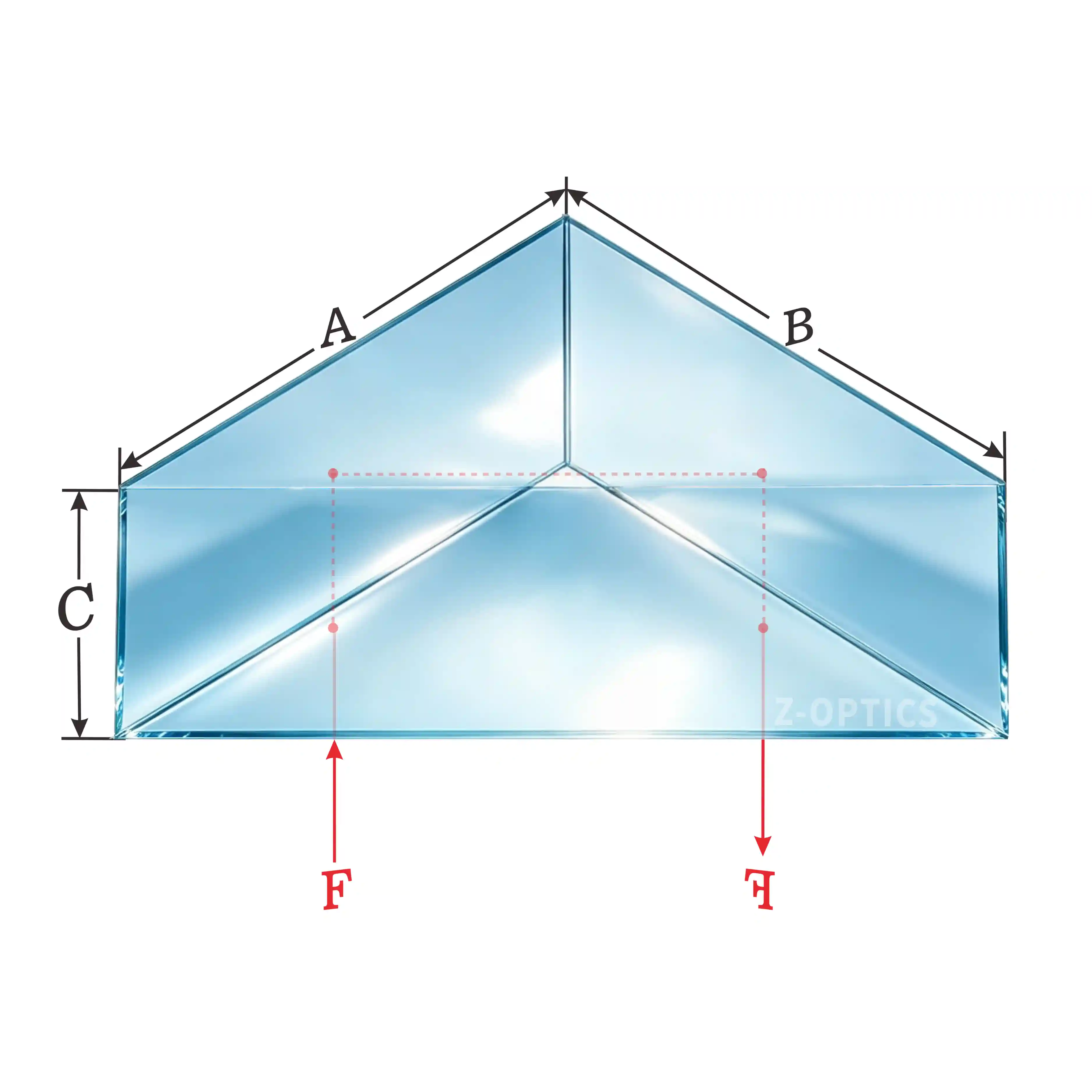

Standard Right Angle Prism
K9 Standard Right Angle Prism
K9 Standard Right Angle Prism
| Part no | Coating On Leg | Part no | Coating on Leg | A=B=C |
| PRS01-010-0 | PRS01-010-0 | 1.0 | ||
| PRS01-020-0 | PRS01-020-0 | 2.0 | ||
| PRS01-050-0-VIS | VIS | PRS01-050-0-NIR | NIR | 5.0 |
| PRS01-063-0-VIS | VIS | PRS01-063-0-NIR | NIR | 6.3 |
| PRS01-080-0-VIS | VIS | PRS01-080-0-NIR | NIR | 8.0 |
| PRS01-100-0-VIS | VIS | PRS01-100-0-NIR | NIR | 10.0 |
| PRS01-125-0-VIS | VIS | PRS01-125-0-NIR | NIR | 12.5 |
| PRS01-150-0-VIS | VIS | PRS01-150-0-NIR | NIR | 15.0 |
| PRS01-200-0-VIS | VIS | PRS01-200-0-NIR | NIR | 20.0 |
| PRS01-250-0-VIS | VIS | PRS01-250-0-NIR | NIR | 25.0 |
| PRS01-300-0-VIS | VIS | PRS01-300-0-NIR | NIR | 30.0 |
| PRS01-400-0-VIS | VIS | PRS01-400-0-NIR | NIR | 40.0 |
| PRS01-500-0-VIS | VIS | PRS01-500-0-NIR | NIR | 50.0 |
| Part no | Coating on Hypotenuse | Part no | Coating on Hypotenuse | A=B=C |
| PRS01-050-4-VIS | VIS | PRS01-050-4-NIR | NIR | 5.0 |
| PRS01-063-4-VIS | VIS | PRS01-063-4-NIR | NIR | 6.3 |
| PRS01-080-4-VIS | VIS | PRS01-080-4-NIR | NIR | 8.0 |
| PRS01-100-4-VIS | VIS | PRS01-100-4-NIR | NIR | 10.0 |
| PRS01-125-4-VIS | VIS | PRS01-125-4-NIR | NIR | 12.5 |
| PRS01-150-4-VIS | VIS | PRS01-150-4-NIR | NIR | 15.0 |
| PRS01-200-4-VIS | VIS | PRS01-200-4-NIR | NIR | 20.0 |
| PRS01-250-4-VIS | VIS | PRS01-250-4-NIR | NIR | 25.0 |
| PRS01-300-4-VIS | VIS | PRS01-300-4-NIR | NIR | 30.0 |
| PRS01-400-4-VIS | VIS | PRS01-400-4-NIR | NIR | 40.0 |
| PRS01-500-4-VIS | VIS | PRS01-500-4-NIR | NIR | 50.0 |
SiO2 Right Angle Prism
SiO2 Right Angle Prism
| Part no | Coating | Part no | Coating | A=B=C |
| PRS01-050-0-FS | none | PRS01-050-2-UV-FS | Aluminum Coating on Hypotenuse and AR@UV on Legs | 5.0 |
| PRS01-063-0-FS | PRS01-063-2-UV-FS | 6.3 | ||
| PRS01-100-0-FS | PRS01-100-2-UV-FS | 10.0 | ||
| PRS01-125-0-FS | PRS01-125-2-UV-FS | 12.5 | ||
| PRS01-150-0-FS | PRS01-150-2-UV-FS | 15.0 | ||
| PRS01-200-0-FS | PRS01-200-2-UV-FS | 20.0 | ||
| PRS01-250-0-FS | PRS01-250-2-UV-FS | 25.0 |
Specifications
| K9 Standard Right Angle Prism | SiO2 Right Angle Prism |
| Material: H-K9L
Size Tolerance: +0.0/-0.2mm Surface Figure: λ/4@632.8nm Surface Quality: 60-40 Angle Tolerance: +/-3 min. Chamfer: <0.25mmx45⁰ |
Material: Fused Silica
Size Tolerance: +0.0/-0.2mm Surface Figure: λ/4@632.8nm Surface Quality: 60-40 Angle Tolerance: +/-3 min. Chamfer: <0.25mmx45⁰ |
