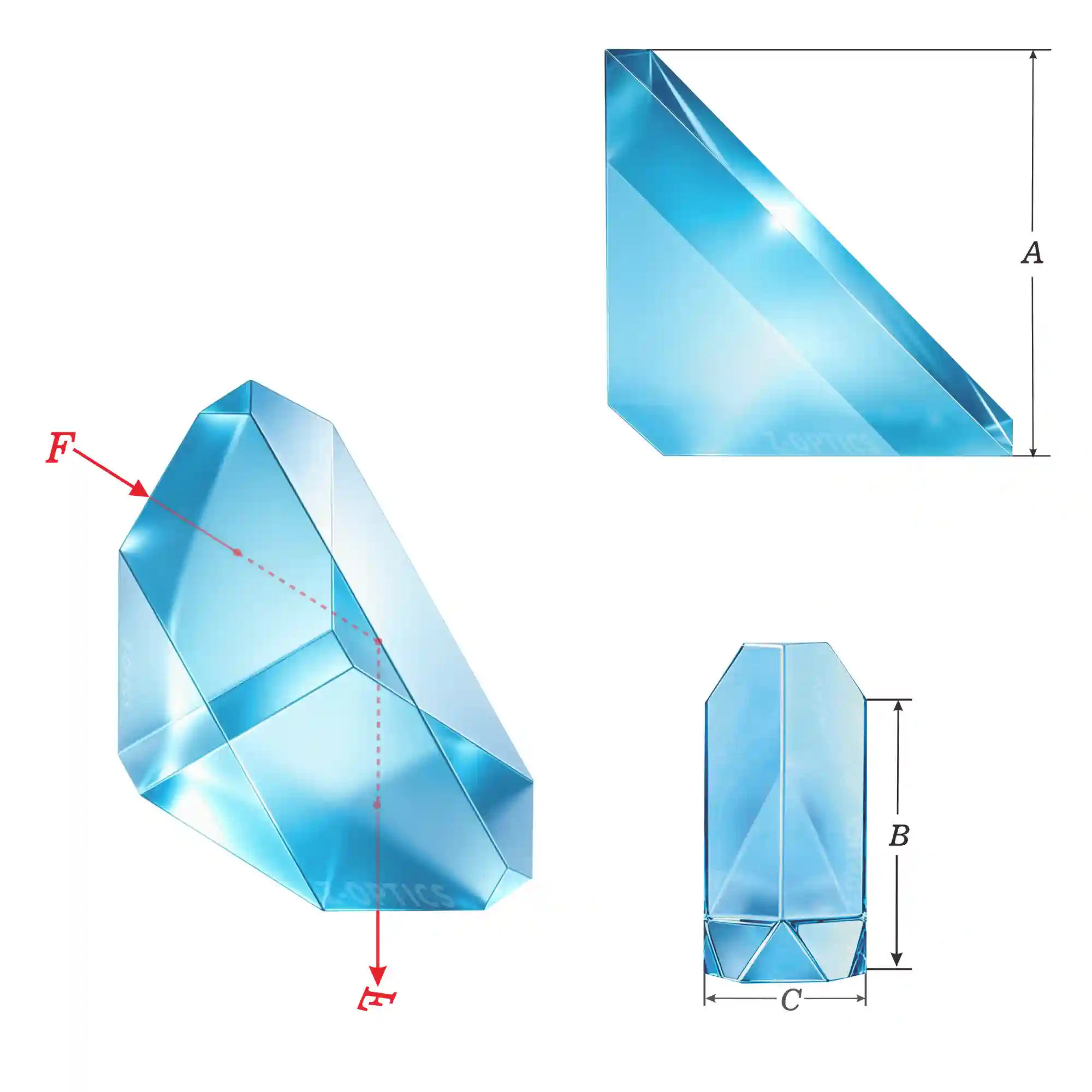

An optical H-K9L roof prism features a precise 90° roof angle configuration to achieve exact 90-degree beam deviation with image inversion. This precision design utilizes two orthogonal reflecting faces to flip images laterally around the roof axis, ensuring critical orientation alignment in compact optical systems. Engineered with a λ/10 surface figure and ±3 arcsecond angle tolerance, these components deliver distortion-free performance across aperture diameters ranging from 9mm to 29mm.

At Z-Optics, we understand the importance of delivering exceptional optical solutions that cater to the needs of our customers. Experience the difference that Z-Optics Roof Prism makes – a world of clarity, precision, and portability awaits you. Elevate your optical experience with Z-Optics

With its sleek and compact design, Z-Optics Roof Prism is the perfect solution for those seeking high-quality optics. Our Roof Prism designed to enhance the performance of binoculars, spotting scopes, and cameras. Our Roof Prism is engineered for resilience and accuracy, with the prisms cemented together as a single unit, ensuring ruggedness and resistance to misalignment. This guarantees long-lasting performance and consistent image quality, no matter the environmental conditions or challenges you may encounter during your expeditions.

Roof Prism applications

  1. Binoculars: Roof prisms are commonly used in binoculars, providing a compact and straight-barrel design.
  2. Spotting Scopes: Roof prisms are utilized in some spotting scopes, offering portability and ease of use.
  3. Cameras: Roof prisms are used in compact digital cameras and camera lenses to maintain a slim form factor.
  4. Laser Range Finders: Roof prisms are employed in laser range finders for accurate distance measurements.

Download Datasheet for more Prisms
