Each fiberport has five degrees of freedom adjustment U-Benches . Travel of X and Y direction is +/-0.7mm, Z >2mm, pitch and yaw +/- 4degree. It’s used for applications requiring flexibility.
U-Benches

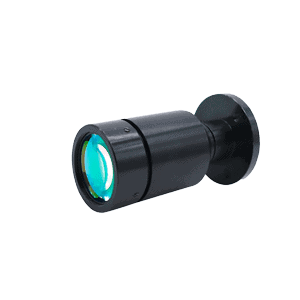

F=7.5mm
F=7.5mm U Benches
| λ (nm) | Bandwidth (nm) | Waist Beam (mm) | Div. (mrad) | EFL (mm) | NA(Lens) | Transmittance | Fiber Type | Connector |
| 1064 | ±30 | 25 | 4.5 | 49.84 | 0.25 | >92% | 62.5/125 | FC/PC FC/APC Sma905 |
| ±30 | 21.2 | 2.8 | 49.84 | 0.25 | 105/125 | |||
| ±30 | 21.2 | 4.9 | 49.84 | 0.25 | 200/220 | |||
| ±30 | 21.2 | 9.3 | 49.84 | 0.25 | 400/440 | |||
| 1310 | ±30 | 25 | 4.5 | 49.97 | 0.25 | 62.5/125 | ||
| ±30 | 21.2 | 2.7 | 49.97 | 0.25 | 105/125 | |||
| ±30 | 21.2 | 4.8 | 49.97 | 0.25 | 200/220 | |||
| ±30 | 21.2 | 9.2 | 49.97 | 0.25 | 400/440 | |||
| 1550 | ±30 | 25 | 4.5 | 50.16 | 0.25 | 62.5/125 | ||
| ±30 | 21.2 | 2.7 | 50.16 | 0.25 | 105/125 | |||
| ±30 | 21.2 | 4.8 | 50.16 | 0.25 | 200/220 | |||
| ±30 | 21.2 | 9.1 | 50.16 | 0.25 | 400/440 |
F=10mm
F=10mm U Benches
| λ (nm) | EFL (mm) | Fiber MFD (um) | Waist Beam (mm) | Div. (mrad) | NA(Lens) | AR Coating | Transmittance |
| 350 -700 | 10 | 3.5 | 1.64 | 0.35 | 0.23 | R<1.0%@350 -700 nm | >95% |
| 600-1050 | 10 | 5 | 2.16 | 0.5 | 0.23 | R<1.0%@600 – 1050 nm | |
| 1050 – 1650 | 10 | 10.4 | 1.99 | 0.99 | 0.23 | R<1.0%@1050 – 1650 nm |
F=11mm
F=11mm U Benches
| λ (nm) | EFL (mm) | Fiber MFD (um) | Waist Beam (mm) | Div. (mrad) | NA(Lens) | AR Coating | Transmittance |
| 350 – 700 | 11 | 3.5 | 1.8 | 0.32 | 0.2 | R<1.0%@350 -700 nm | >95% |
| 600-1050 | 11 | 5 | 2.38 | 0.46 | 0.2 | R<1.0%@600 – 1050 nm | |
| 1050 – 1650 | 11 | 10.4 | 2.09 | 0.95 | 0.2 | R<1.0%@1050 – 1650 nm |
