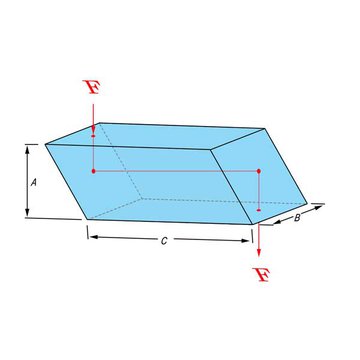

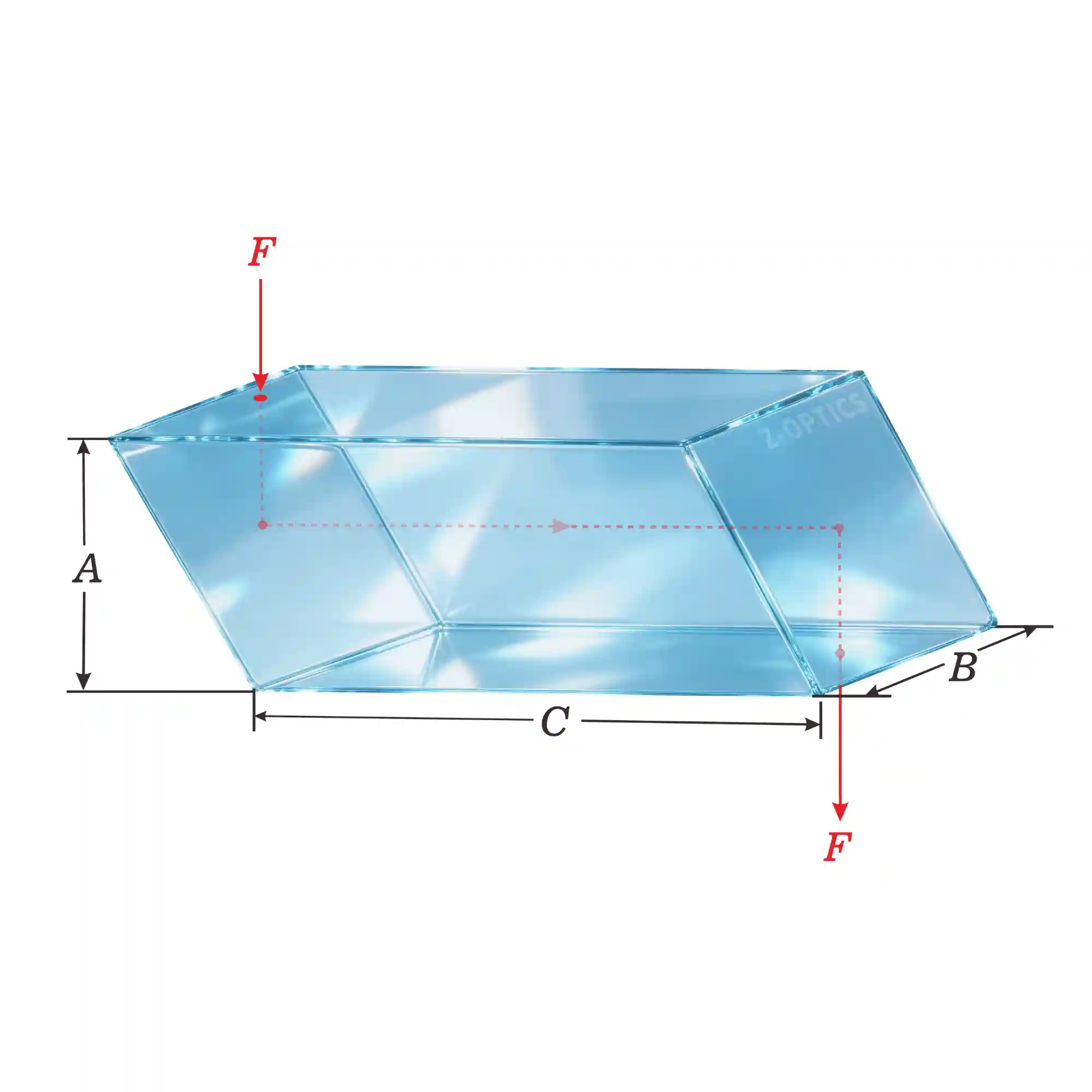

The Rhomboid Prism is a parallelogram with uneven length neighbouring sides and non-right angled angles.
Rhomboid prisms are frequently used to dispense a laser beam while maintaining its direction. Rhomboid prisms will shift the optical axis in imaging applications without inverting the picture. They have high tolerance angles, which ensure that the output beam is parallel to the input beam within 30 arcseconds.
Features –
1. Lateral Beam Displacement.
2. Parallel Input and Output Beams to 30 Arcseconds.
3. Repositions the optical axis without inverting the image.
4. Exceptionally well-suited for severe displacement applications.
