Beamsplitters
Laser Line High Energy Polarizing Cube Beamsplitter
H-K9L
Laser Line High Energy Polarizing Cube Beamsplitter
| Material | Size (mm) | Tp/Ts | Wavelength (nm) | Part No |
| K9 | 12.7×12.7×12.7 | >1000:1 | 532 | BSP8-127-532 |
| K9 | 20x20x20 | >1000:1 | 532 | BSP8-200-532 |
| K9 | 12.7×12.7×12.7 | >1000:1 | 1064 | BSP8-127-1064 |
| K9 | 20x20x20 | >1000:1 | 1064 | BSP8-200-1064 |
UV Fused Silica
Laser Line High Energy Polarizing Cube Beamsplitter
| Material | Size (mm) | Tp/Ts | Wavelength (nm) | Part No |
| UV Fused Silica | 12.7×12.7×12.7 | >1000:1 | 266 | BSP8-127-266FS |
| UV Fused Silica | 20x20x20 | >1000:1 | 266 | BSP8-200-266FS |
| UV Fused Silica | 12.7×12.7×12.7 | >1000:1 | 355 | BSP8-127-355FS |
| UV Fused Silica | 20x20x20 | >1000:1 | 355 | BSP8-200-355FS |
Specifications
- Material:H-K9L or UV Fused Silica
- Surface Figure: <λ/8@632.8nm
- Surface Quality: 40-20 Scratch and Dig
- Dimension tolerance: ± 0.2mm
- Clear Aperture: >90%
- Beam deviation: <3′
- Extinction ratio: Tp/Ts>1000:1

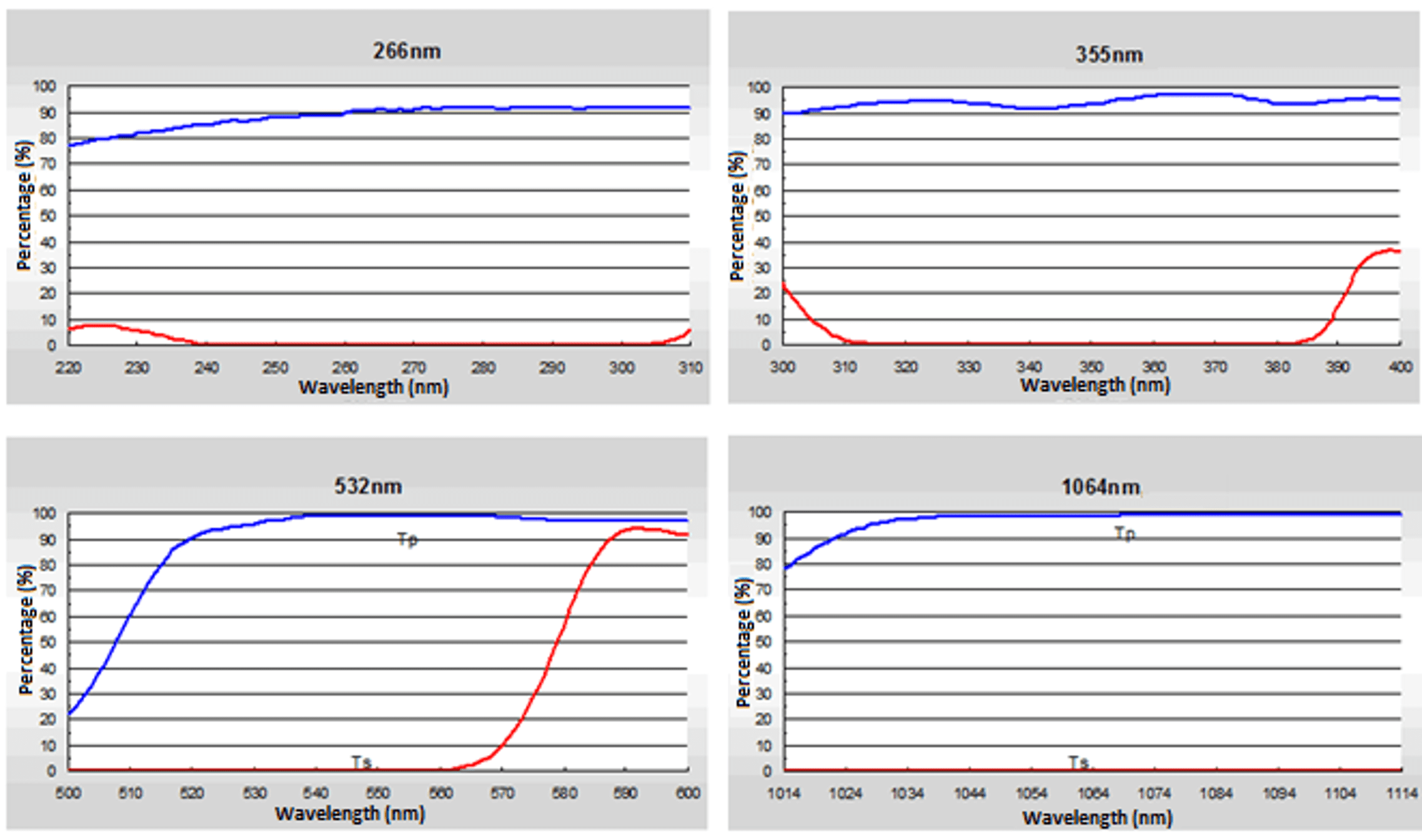

- Transmittance: Tp>95%, Ts<0.1%
- Reflectance: Rs>99.9%, Rp<5%
- Coating: Dielectric coating on hypotenuse to split beam and broadband AR coating on other surfaces beam passes
- Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm
