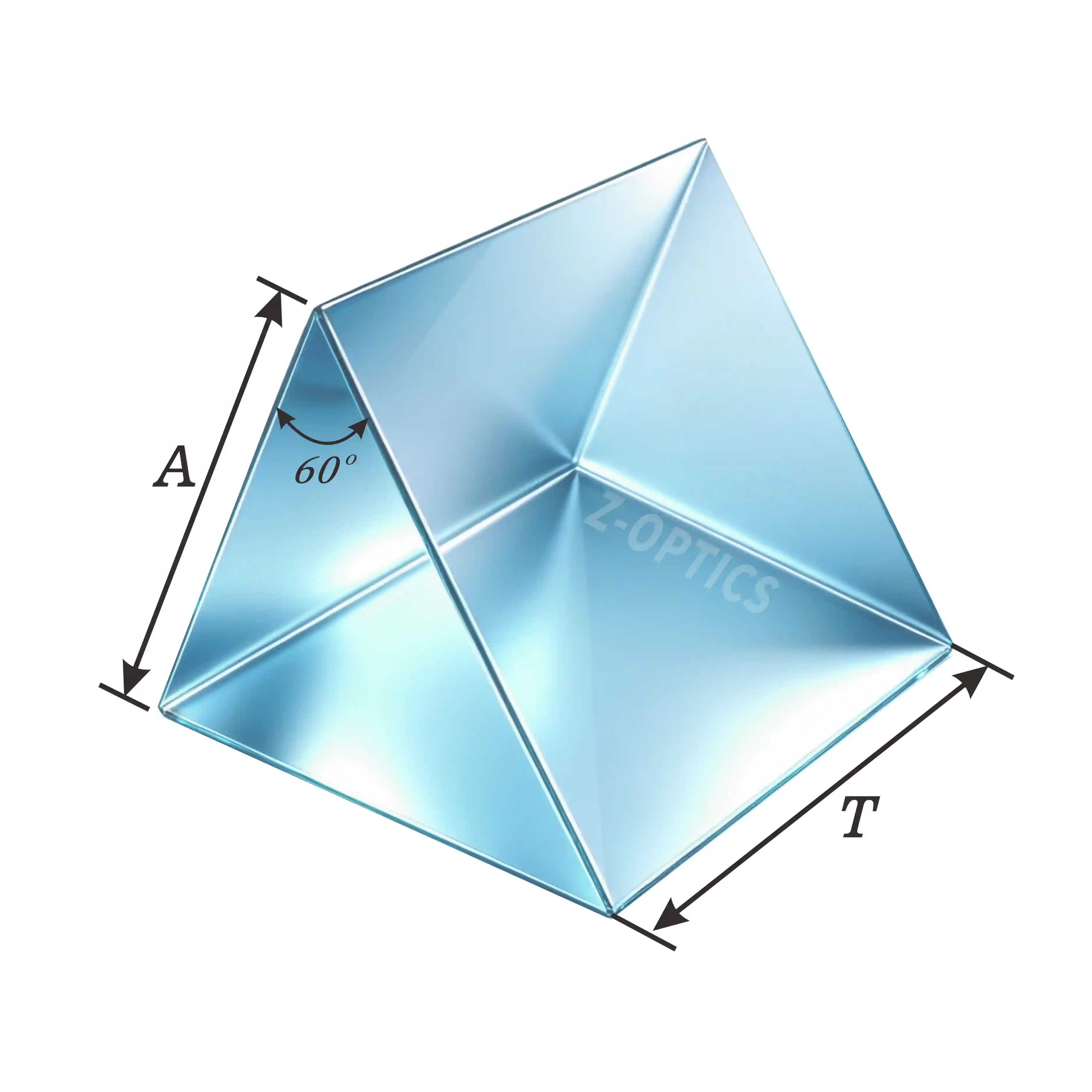

All sides of an Equilateral Prism are the same length. This also implies that they have three 60-degree angles. They are beneficial in wavelength separation applications. They are also often used to refract light. This refraction demonstrates that white light is a blend of all the colours in the spectrum.
Equilateral Prisms
Equilateral Prisms Catalogue
Equilateral Prisms Catalogue
Part no | A (mm) | T (mm) | Material |
PRS6127-127 | 12.7 | 12.7 | K9 |
PRS6254-254 | 25.4 | 25.4 | K9 |
PRS6127-127 | 12.7 | 12.7 | K9 |
PRS6254-254-ZF13 | 25.4 | 25.4 | ZF13 |
PRS6127-127-ZF13 | 12.7 | 12.7 | ZF13 |
PRS6254-254 | 25.4 | 25.4 | K9 |
Specifications
- Material: H-K9L
- Size Tolerance: +0.0/-0.2mm
- Surface Quality: 60/40
- Aperture: 90%
- Angle Tolerance: 60°±3′
- Surface Figure: λ/4@632.8nm
- Chamfer: <0.5mmx45°
