Cylindrical Lenses by Z-Optics Z Optics

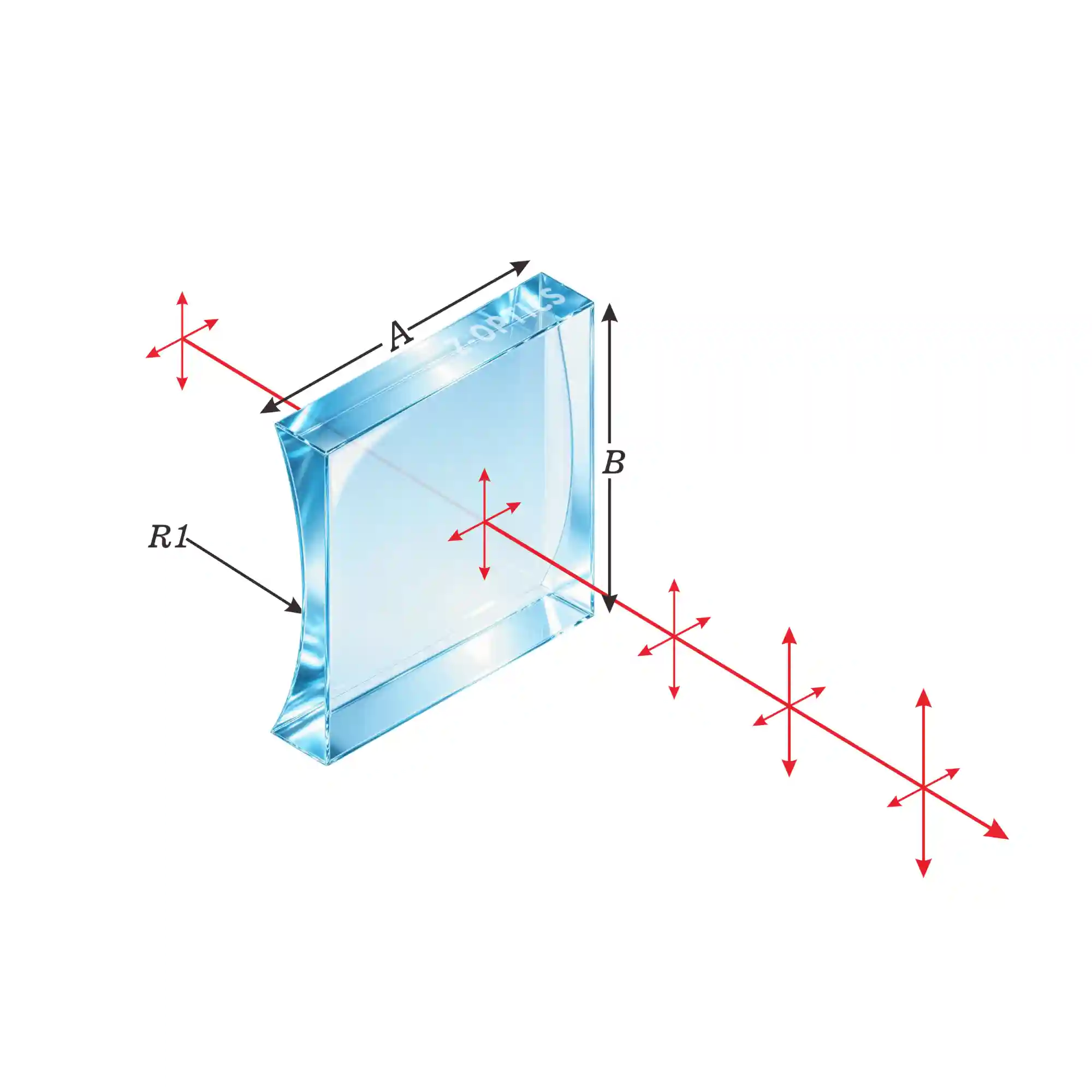

Plano-concave cylindrical lens drawing showing a lens with a flat surface on one side and a curved surface on the other that bulges inward. Used in optical applications to correct for astigmatism and other vision issues. This image can help illustrate the concept of cylindrical lenses and their uses in optics.

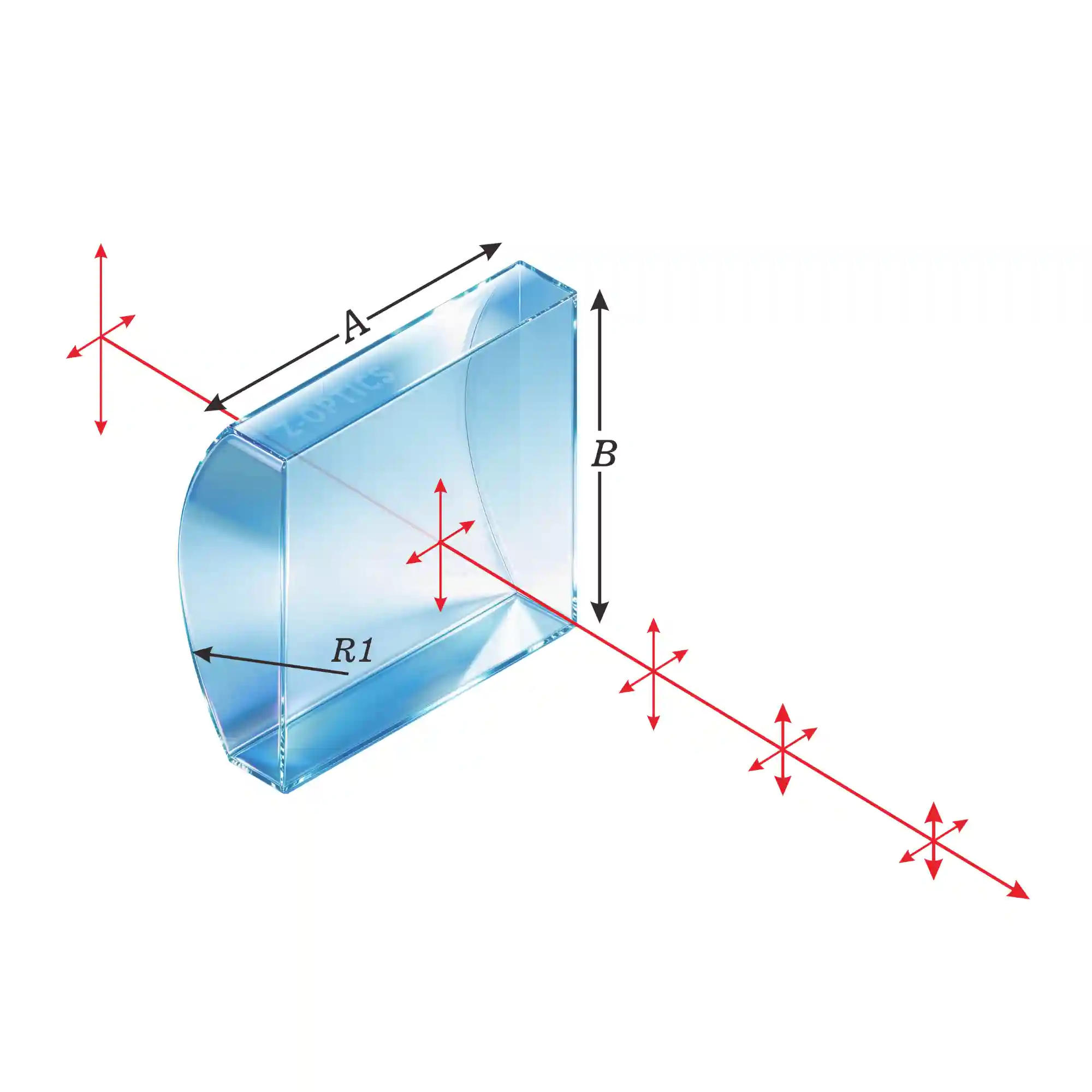

Plano-convex cylindrical lens image depicting a lens with a flat surface and a convex surface that bulges outward. Used in a variety of optical applications such as lasers and telescopes. This image can help illustrate the concept of cylindrical lenses and their applications in optics.

Cylindrical Lenses by Z-Optics

Z-OPTICS has big catalog of cylindrical lens off-the-shelf for quick delivery and provides quick sampling service for new drawings.
Multiplicity of materials, Glass, Fused Silica, Sapphire, CaF2, ZnSe ….
Innovative low cost plano convex cylindrical lens is available.

Overview

Ready Stock: Z-Optics offers a large catalog of cylindrical lenses available for fast delivery and custom sampling for your unique designs.
Material Multiplicity: Select from premium optical glass, fused silica, sapphire, CaF₂, ZnSe, and more—a solution for every requirement.
Cost-Effective Options: Innovative low-cost plano convex cylindrical lenses and specialized shapes for demanding optical applications.

What Is a Cylindrical Lens?

A cylindrical lens focuses light into a straight line. Its surface is shaped from a cylinder, compressing images perpendicular to the axis and maintaining clarity parallel to it. These lenses are critical for correcting astigmatism, as well as precision tasks in spectroscopy, laser scanning, image projection, and advanced imaging systems.

Explore a comprehensive description on Wikipedia – Cylindrical Lens for scientific insight.

Product Features & Benefits

Wide range of sizes and focal lengths for scientific, industrial, and laser applications
Custom manufacturing to meet your specifications—reach out via the Contact Page for tailored solutions
Rigorous optical and quality inspections for every lens—learn more about our standards in our Lens Catalog (PDF)

Technical Specifications

Materials: Fused Silica, Optical Glass, Sapphire, Calcium Fluoride (CaF2), Zinc Selenide (ZnSe)
Available Types: Plano-convex, plano-concave, custom geometries
Finish: Precision polished for low scatter and high optical clarity
Coatings: Broadband AR, laser-line AR, and custom options
Tolerances: Customizable to demanding research and OEM requirements

Applications

Laser Scanning and Beam Shaping
Optical Communication Systems
Spectroscopy & Analytical Instruments
Imaging, Microscopy, and Machine Vision
Astigmatism Correction in Ophthalmology (AAO Resource)

Ordering & Support

Request a quote or ask about custom options: Contact Z-Optics
Browse our full line of optical lenses for complementary products
See our manufacturing standards: Download Cylindrical Lens Datasheet

For technical support or to discuss your requirements, visit our main optics page or refer to our full cylindrical lens portfolio.

Download Cylindrical Lens Datasheet (PDF)

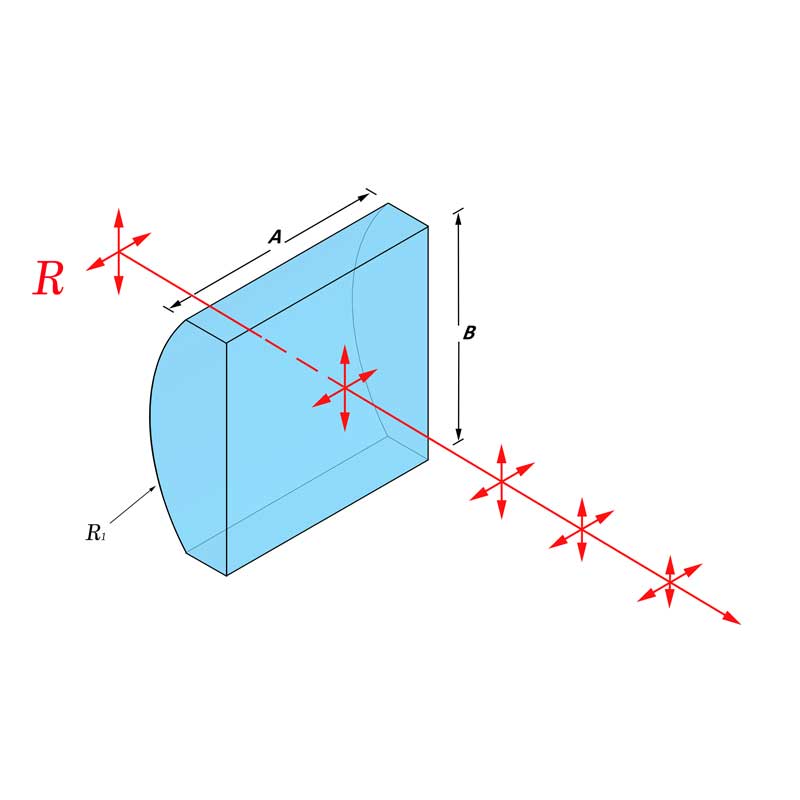

Plano Convex CY Lens

K9 Plano Convex Cylindrical Lens

Part Number	ϕ (mm)	f (mm)	fb (mm)	R1	Tc (mm)	Te (mm)
LEN8-50×50-020-24	5.0×5.0	20	18.5	10.33	2.31	2.0
LEN8-60×40-040-36	6.0×4.0	4	1.7	2.07	3.6	2.0
LEN8-60×40-5R8-25	6.0×4.0	5.8	4	3	2.5	2.0
LEN8-60×40-5R8-28	6.0×4.0	5.8	4	3	2.8	2.0
LEN8-60×40-5R8-26	6.0×4.0	5.8	4	3	2.6	2.0
LEN8-60×60-6R4-40	6.0×6.0	6.4	3.7	3.3	4	2.0
LEN8-80×40-040-36	8.0×4.0	4	1.7	2.07	3.6	2.0
LEN8-80×40-5R8-25	8.0×4.0	5.8	4	3	2.5	2.0
LEN8-80×60-6R4-40	8.0×6.0	6.4	3.7	3.3	4	2.0
LEN8-90×70-7R7-41	9.0×7.0	7.7	5	4.1	4.1	2.0
LEN8-90×70-7R7-410	9.0×7.0	7.7	5	41	4.1	2.0
LEN8-100×100-12R7-44	10.0×10.0	12.7	9.9	6.56	4.31	2.0
LEN8-100×100-020-33	10.0×10.0	20	17.8	10.33	3.29	2.0
LEN8-100×100-025-31	10.0×10.0	25	22.9	12.92	3.01	2.0
LEN8-100×100-12R7-4310	10.0×10.0	12.7	9.5	6.56	4.31	2.0
LEN8-120×100-010-59	12.0×10.0	10	6.1	5.17	5.9	2.0
LEN8-120×100-12R7-44	12.0×10.0	12.7	9.9	6.56	4.31	2.0
LEN8-120×100-015-38	12.0×10.0	15	12.5	7.76	3.8	2.0
LEN8-120×100-020-33	12.0×10.0	20	17.8	10.34	3.3	2.0
LEN8-120×100-025-30	12.0×10.0	25	22.9	12.93	3	2.0
LEN8-120×100-040-26	12.0×10.0	40	38.3	20.68	2.6	2.0
LEN8-120×100-12R7-4310	12.0×10.0	12.7	9.9	6.56	4.31	2.0
LEN8-120×100-015-36	12.0×10.0	15	12.5	7.76	3.6	2.0
LEN8-120×60-6R4-40	12.0×6.0	6.4	3.7	3.3	4	2.0
LEN8-120×60-6R4-400	12.0×6.0	6.4	3.7	3.3	40	2.0
LEN8125-12R7-66	12.5	12.7	8.36	6.56	6.57	2.0
LEN8125-025-37	12.5	25	22.64	12.93	3.61	2.0
LEN8125-050-28	12.5	50	48.19	25.85	2.77	2.0
LEN8125-075-25	12.5	75	73.39	38.78	2.5	2.0
LEN8125-100-24	12.5	100	98.43	51.68	2.38	2.0
LEN8-125-075-25	12.5	75	73.39	38.78	2.5	2.0
LEN8-125-100-24	12.5	100	98.43	51.68	2.38	2.0
LEN8-170×150-020-52	17.0×15.0	20	16.6	10.34	5.2	2.0
LEN8-170×150-020-50	17.0×15.0	20	16.6	10.34	5.2	2.0
LEN8-200×100-010-59	20.0×10.0	10	6.1	5.17	5.9	2.0
LEN8-200×100-12R7-44	20.0×10.0	12.7	9.9	6.56	4.31	2.0
LEN8-200×100-015-36	20.0×10.0	15	12.5	7.76	3.6	2.0
LEN8-200×100-020-33	20.0×10.0	20	17.8	10.34	3.29	2.0
LEN8-200×100-025-31	20.0×10.0	25	23	12.93	3.01	2.0
LEN8-200×100-040-26	20.0×10.0	40	36.3	20.68	2.6	2.0
LEN8-200×100-015-38	20.0×10.0	15	12.5	7.76	3.8	2.0
LEN8-200×200-050-41	20.0×20.0	50	47.4	25.65	4.02	2.0
LEN8-200×200-075-34	20.0×20.0	75	72.8	36.78	3.31	2.0
LEN8-200×200-100-40	20.0×20.0	100	97.4	51.68	3.98	3.0
LEN8-200×200-150-37	20.0×20.0	150	147.6	77.55	3.65	3.0
LEN8-200×200-200-35	20.0×20.0	200	197.7	103.4	3.49	3.0
LEN8-200×200-250-34	20.0×20.0	250	247.8	129.25	3.39	3.0
LEN8-200×200-300-34	20.0×20.0	300	297.8	155.1	3.32	3.0
LEN8-200×200-500-32	20.0×20.0	500	497.9	258.5	3.19	3.0
LEN8-200×200-1000-31	20.0×20.0	1000	998.2	516.8	3.1	3.0
LEN8025-025-117	25.0	25	17.36	12.93	11.62	2.0
LEN8025-050-53	25.0	50	46.58	25.85	5.22	2.0
LEN8025-075-41	25.0	75	72.36	38.78	4.07	2.0
LEN8025-100-36	25.0	100	97.67	51.68	3.53	2.0
LEN8025-125-33	25.0	125	122.88	64.6	3.22	2.0
LEN8025-150-31	25.0	150	148.07	77.55	3.01	2.0
LEN8250-025-117	25.0	25	17.36	12.93	11.62	2.0
LEN8250-050-53	25.0	50	46.58	25.85	5.22	2.0
LEN8250-075-41	25.0	75	72.36	38.78	4.07	2.0
LEN8250-100-36	25.0	100	97.67	51.68	3.53	2.0
LEN8250-125-33	25.0	125	122.88	64.6	3.22	2.0
LEN8250-150-31	25.0	150	148.07	77.55	3.01	2.0
LEN8-400×200-025-67	40.0×20.0	25	20.4	12.93	6.7	2.0
LEN8-400×200-030-57	40.0×20.0	30	26.3	15.51	5.7	2.0
LEN8-400×200-040-46	40.0×20.0	40	37	20.68	4.6	2.0
LEN8-400×200-050-41	40.0×20.0	50	47.4	25.85	4.02	2.0
LEN8-400×200-075-34	40.0×20.0	75	72.8	38.78	3.31	2.0
LEN8-400×200-100-40	40.0×20.0	100	97.4	51.68	3.98	3.0
LEN8-400×200-150-37	40.0×20.0	150	147.6	77.55	3.65	3.0
LEN8-400×200-200-35	40.0×20.0	200	197.7	103.4	3.49	3.0
LEN8-400×200-250-31	40.0×20.0	250	247.8	129.25	3.39	3.0
LEN8-400×200-300-34	40.0×20.0	300	297.6	155.1	3.32	3.0
LEN8-400×200-500-32	40.0×20.0	500	497.9	258.5	3.19	3.0
LEN8-400×200-1000-31	40.0×20.0	1000	996.2	516.8	3.1	3.0
LEN8-400×200-040-460	40.0×20.0	40	37	20.68	4.6	2.0
LEN8-400×200-250-34	40.0×20.0	250	247.8	129.25	3.39	3.0
LEN8-530×530-075-115	53.0×50.6	75	67.4	38.78	11.5	2.0
LEN8-530×530-50R8-216	53.0×50.8	50.8	36.7	26.26	21.6	2.0
LEN8-530×530-60R6-216	53.0×50.8	50.8	36.7	26.26	21.6	2.0
LEN8-600×300-050-68	60.0×30.0	50	455	25.85	6.8	2.0
LEN8-600×300-100-52	60.0×30.0	100	96.6	51.7	5.2	3.0
LEN8-600×300-150-45	60.0×30.0	150	147.1	77.55	4.5	3.0
LEN8-600×300-200-41	60.0×30.0	200	197.3	103.4	4.1	3.0
LEN8-600×300-300-37	60.0×30.0	300	297.7	155.1	3.7	3.0
LEN8-600×300-400-35	60.0×30.0	400	397.7	206.8	3.5	3.0
LEN8-600×300-500-34	60.0×30.0	500	497.7	258.5	3.4	3.0
LEN8-600×300-1000-32	60.0×30.0	1000	997.9	516.6	3.2	3.0
LEN8-600×300-150-450	60.0×30.0	150	147.1	77.55	4.5	3.0

SiO2 Plano Convex Cylindrical Lens

Part Number	ϕ	f (mm)	fb (mm)	R1	Tc (mm)	Te (mm)
LEN8-100×100-12R7-49FS	10.0×10.0	12.7	9.38	5.82	4.84	2.0
LEN8-100×100-020-35FS	10.0×10.0	20	17.59	9.16	3.49	2.0
LEN8-100×100-025-32FS	10.0×10.0	25	22.81	11.45	3.15	2.0
LEN8-100×100-040-27FS	10.0×10.0	40	38.11	16.32	2.7	2.0
LEN8-100×100-050-26FS	10.0×10.0	50	48.24	22.92	2.55	2.0
LEN8-100×100-075-24FS	10.0×10.0	75	73.3	34.35	2.37	2.0
LEN8-100×100-100-23FS	10.0×10.0	100	98.44	45.85	2.27	2.0
LEN8-100×100-150-22FS	10.0×10.0	150	148.52	68.78	2.18	2.0
LEN8-100×100-200-22FS	10.0×10.0	200	198.53	91.7	2.14	2.0
LEN8-100×100-250-22FS	10.0×10.0	250	248.54	114.62	2.11	2.0
LEN8-100×100-300-21FS	10.0×10.0	300	298.57	137.55	2.09	2.0
LEN8125-025-39FS	12.5	25	22.36	11.46	3.85	2.0
LEN8125-050-29FS	12.5	50	48.05	22.93	2.87	2.0
LEN8125-075-26FS	12.5	75	73.23	34.38	2.57	2.0
LEN8125-100-25FS	12.5	100	98.34	45.85	2.43	2.0
LEN8-200×100-127-49FS	20.0×10.0	127	9.38	5.82	4.84	2.0
LEN8-200×100-020-35FS	20.0×10.0	20	17.59	9.16	3.49	2.0
LEN8-200×100-025-32FS	20.0×10.0	25	22.81	11.45	3.15	2.0
LEN8-200×100-040-27FS	20.0×10.0	40	38.11	18.32	2.7	2.0
LEN8-200×100-050-26FS	20.0×10.0	50	48.24	22.92	2.55	2.0
LEN8-200×100-075-24FS	20.0×10.0	75	73.3	34.35	2.37	2.0
LEN8-200×100-100-23FS	20.0×10.0	100	98.44	45.85	2.27	2.0
LEN8-200×100-150-22FS	20.0×10.0	150	148.52	68.78	2.18	2.0
LEN8-200×100-200-22FS	20.0×10.0	200	198.53	91.7	2.14	2.0
LEN8-200×100-250-22FS	20.0×10.0	250	248.54	114.62	2.11	2.0
LEN8-200×100-300-21FS	20.0×10.0	300	298.57	137.55	2.09	2.0
LEN8250-050-58FS	25.0	50	46.1	22.93	5.71	2.0
LEN8250-075-44FS	25.0	75	72.03	34.39	4.35	2.0
LEN8250-100-38FS	25.0	100	97.44	45.85	3.74	2.0
LEN8250-150-32FS	25.0	150	147.86	68.78	3.15	2.0
LEN8-300×200-025-79FS	30.0×20.0	25	19.58	11.45	7.87	2.0
LEN8-300×200-050-43FS	30.0×20.0	50	47.04	22.92	4.3	2.0
LEN8-300×200-075-35FS	30.0×20.0	75	72.53	34.35	3.49	2.0
LEN8-300×200-100-31FS	30.0×20.0	100	97.88	45.85	3.1	2.0

Plano Concave CY Lens

K9 Plano Concave Cylindrical Lens

Part Number	ϕ (mm)	f (mm)	fb (mm)	R1	Tc (mm)	Te (mm)
LEN8-80×40-M004-20	8.0×4.0	-4	-5.3	-2.07	2.0	3.54
LEN8-80×40-M5R5-20	8.0×4.0	-5.8	-7.1	-3	2.0	2.76
LEN8-80×40-M5R8-20	8.0×4.0	-5.8	-7.1	-3	2.0	2.76
LEN8-80×60-M6R4-20	8.0×6.0	-6.4	-7.7	-3.3	2.0	3.93
LEN8-100×100-M12R7-20	10.0×10.0	-12.7	-14	-6.56	2.0	4.31
LEN8-100×100-M025-20	10.0×10.0	-25	-26.2	-12.93	2.0	3.01
LEN8-120×60-M6R4-20	12.0×6.0	-6.4	-7.7	-3.3	2.0	3.93
LEN8-120×100-M12R7-20	12.0×10.0	-12.7	-14	-6.56	2.0	4.31
LEN8-120×100-M015-20	12.0×10.0	-15	-16.3	-7.76	2.0	3.83
LEN8-120×100-M025-20	12.0×10.0	-25	-26.2	-12.93	2.0	3.01
LEN8-120×100-M040-20	12.0×10.0	-40	-41.3	-20.68	2.0	2.61
LEN8-200×100-M12R7-20	20.0×10.0	-12.7	-14	-6.56	2.0	4.31
LEN8-200×100-M025-20	20.0×10.0	-25	-26.3	-12.93	2.0	3.01
LEN8-200×200-M050-20	20.0×20.0	-50	-51.3	-25.85	2.0	4.01
LEN8-200×200-M075-30	20.0×20.0	-75	-76.3	-38.78	3.0	4.31
LEN8-200×200-M100-30	20.0×20.0	-100	-101.3	-51.64	3.0	3.98
LEN8-200×200-M150-30	20.0×20.0	-150	-152	-77.55	3.0	3.65
LEN8-200×200-M200-30	20.0×20.0	-200	-202	-103.4	3.0	3.48
LEN8-200×200-M250-30	20.0×20.0	-250	-252	-129.25	3.0	3.39
LEN8-200×200-M300-30	20.0×20.0	-300	-301.7	-155.1	3.0	3.32
LEN8-200×200-M600-30	20.0×20.0	-600	-502	-258.5	3.0	3.19
LEN8-200×200-M1000-30	20.0×20.0	-1000	-1002.2	-516.8	3.0	3.1
LEN8-210×190-M019-20	21.0×19.0	-19	-20.3	-9.8	2.0	9.39
LEN8-250×160-M25R2-15	25.0×16.0	-25.2	-26.14	-13	1.5	4.25
LEN8-400×200-M050-20	40.0×20.0	-50	-52	-25.85	2.0	4.01
LEN8-400×200-M075-30	40.0×20.0	-75	-77	-38.78	3.0	4.31
LEN8-400×200-M100-30	40.0×20.0	-100	-101.3	-51.68	3.0	3.98
LEN8-400×200-M150-30	40.0×20.0	-150	-152	-77.55	3.0	3.65
LEN8-400×200-M200-30	40.0×20.0	-200	-202	-103.4	3.0	3.48
LEN8-400×200-M250-30	40.0×20.0	-250	-252	-129.25	3.0	3.39
LEN8-400×200-M500-30	40.0×20.0	-500	-502	-258.5	3.0	3.19
LEN8-400×200-M1000-30	40.0×20.0	-1000	-1002.2	-516.8	3.0	3.1
LEN8-530x50R8-M50R8-20	53.0×50.8	-50.8	-52.3	-26.4	2.0	19.92
LEN8-530x50R8-M075-20	53.0×50.8	-75	-76.3	-38.8	2.0	11.13

SiO2 Plano Concave Cylindrical Lens

Part Number	ϕ	f (mm)	fb (mm)	R1	Tc (mm)	Te (mm)
LEN8-100×100-M12R7-20FS	10.0×10.0	-12.7	-14.07	5.82	2.0	4.84
LEN8-100×100-M020-20FS	10.0×10.0	-20	-21.35	9.16	2.0	3.49
LEN8-100×100-M025-20FS	10.0×10.0	-25	-26.35	11.45	2.0	3.15
LEN8-100×100-M040-20FS	10.0×10.0	-40	-41.33	18.32	2.0	2.7
LEN8-100×100-M060-20FS	10.0×10.0	-50	-51.36	22.92	2.0	2.55
LEN8-100×100-M075-20FS	10.0×10.0	-75	-76.3	34.35	2.0	2.37
LEN8-100×100-M100-20FS	10.0×10.0	-100	-101.38	45.35	2.0	2.27
LEN8-100×100-M150-20FS	10.0×10.0	-150	-151.39	68.78	2.0	2.18
LEN8-100×100-M200-20FS	10.0×10.0	-200	-201.39	91.7	2.0	2.14
LEN8-100×100-M250-20FS	10.0×10.0	-250	-251.38	114.62	2.0	2.11
LEN8-100×100-M300-20FS	10.0×10.0	-300	-301.4	137.55	2.0	2.09
LEN8-200×100-M12R7-20FS	20.0×10.0	-12.7	-14.07	5.82	2.0	4.84
LEN8-200×100-M020-20FS	20.0×10.0	-20	-21.35	9.16	2.0	3.49
LEN8-200×100-M025-20FS	20.0×10.0	-25	-26.35	11.45	2.0	3.15
LEN8-200×100-M040-20FS	20.0×10.0	-40	-41.33	18.32	2.0	2.7
LEN8-200×100-M050-20FS	20.0×10.0	-50	-51.36	22.92	2.0	2.55
LEN8-200×100-M075-20FS	20.0×10.0	-75	-76.3	34.35	2.0	2.37
LEN8-200×100-M100-20FS	20.0×10.0	-100	-101.38	45.85	2.0	2.27
LEN8-200×100-M150-20FS	20.0×10.0	-150	-151.39	68.78	2.0	2.18
LEN8-200×100-M200-20FS	20.0×10.0	-200	-201.39	91.7	2.0	2.14
LEN8-200×100-M250-20FS	20.0×10.0	-250	-251.38	114.62	2.0	2.11
LEN8-200×100-M300-20FS	20.0×10.0	-300	-301.4	137.55	2.0	2.09
LEN8-300X200-M025-20FS	30.0X20.0	-25	-26.35	11.45	2.0	7.87
LEN8-300×200-M050-20FS	30.0×20.0	-50	-51.36	22.92	2.0	4.3
LEN8-300×200-M075-20FS	30.0×20.0	-75	-76.3	34.35	2.0	3.49
LEN8-300×200-M100-20FS	30.0×20.0	-100	-101.38	45.85	2.0	3.1

Specifications

Product Details

Materials: H-K9L or other optical glass, fused silica, CaF2 and ZnSe
Diameter tolerance: +0/-0.01 mm
Focal length tolerance: +/- 1%
Surface Quality: 60/40
Clear Aperture: >90%
Surface Figure: λ/2 at 633nm on Plano side
Coating: Customer Specified

Low Cost Plano Convex CY Lens

A cylindrical lens normally is rather expensive than a spherical lens. That limits its applications. Z-Optics applies the technology of half-ball lenses to manufacture plano-convex cylindrical lenses. Cost is greatly reduced. If you have a problem with the cost of a plano-convex cylindrical lens, try our quotation, please.

Specifications:

Material: H-K9L or other optical glass, fused Silica
R1: most cost-effective: 0.75~2.5mm Max.<20mm
R2: Flat Length: upon request
Center thickness tolerance: +/-0.05mm
Surface Figure: >λ/2
Surface Quality: 60/40, 40/20, 20/10

Application: Laser line, LED illumination

Cylindrical Lenses by Z-Optics
