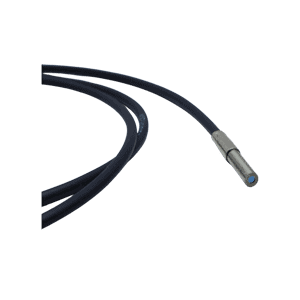

Single mode pigtailed fiber collimators are used to transform the laser emitted from fiber into a parallel Gaussian beam by finely positioning the lens to fiber or couple the parallel Gaussian beam into fiber in inverse. It can be used in reflective type and thrubeam type. Normally, a sphere lens or GRIN lens is used in collimator to transform light.
It can be divided into specified working distance collimators and wide working distance range collimators.
| λ (nm) | WD (mm) | Band width (nm) | Waist Dia. (mm) | Div. (mrad) | Package Dia. (mm) | Insert Loss (dB) | Return Loss (dB) | ModeField Dia. (μm) | Fiber Type | Connector |
| 405 | 100 | ±20 | 0.27 | 2.1 | φ3.4 | ≤2.5 | ≥55 | 3.0±0.5 | 405HP | FC/PC FC/APC LC/PC Or Customer specified |
| 405 | 300 | ±20 | 0.7 | 0.78 | φ3.4 | ≤2.5 | ≥55 | 3.0±0.5 | ||
| 450 | 100 | ±20 | 0.26 | 2.3 | φ3.4 | <2.0 | ≥55 | 3.5±0.5 | 450HP | |
| 450 | 300 | ±20 | 0.68 | 0.87 | φ3.4 | ≤2.0 | ≥55 | 3.5±0.5 | ||
| 525 | 100 | ±20 | 0.31 | 2.3 | φ3.4 | ≤1.5 | ≥55 | 3.6±0.5 | ||
| 525 | 300 | ±20 | 0.8 | 0.87 | φ3.4 | ≤1.5 | ≥55 | 3.6±0.5 | ||
| 635 | 100 | ±20 | 0.39 | 2.6 | φ3.4 | ≤0.7 | ≥55 | 4.2±0.5 | 630HP | |
| 635 | 300 | ±20 | 0.85 | 1 | φ3.4 | ≤0.8 | ≥55 | 4.2±0.5 | ||
| 635 | 1000 | ±20 | 1.32 | 0.7 | φ3.4 | ≤1.0 | ≥55 | 4.2±0.5 |
| λ (nm) | WD (mm) | Band width (nm) | Waist Dia. (mm) | Div. (mrad) | Package Dia. (mm) | Insert Loss (dB) | Return Loss (dB) | ModeField Dia. (μm) | Fiber Type | Connector |
| 780 | 100 | ±20 | 0.39 | 2.6 | φ3.4 | ≤0.6 | ≥55 | 4.5±0.5 | 780HP | FC/PC FC/APC LC/PC Or Customer specified |
| 780 | 300 | ±20 | 0.99 | 1 | φ3.4 | ≤0.7 | ≥55 | 4.5±0.5 | ||
| 780 | 1000 | ±20 | 1.55 | 0.7 | φ4.0 | ≤0.9 | ≥55 | 4.5±0.5 | ||
| 850 | 100 | ±20 | 0.37 | 3 | φ3.4 | ≤0.6 | ≥55 | 5.0±0.5 | ||
| 850 | 300 | ±20 | 0.97 | 1.1 | φ3.4 | ≤0.7 | ≥55 | 5.0±0.5 | ||
| 850 | 1000 | ±20 | 1.51 | 0.75 | φ4.0 | ≤0.9 | ≥55 | 5.0±0.5 | ||
| 980 | 100 | ±20 | 0.36 | 3.5 | φ3.4 | ≤0.5 | ≥55 | 5.9±0.3 | 980HP | |
| 980 | 300 | ±20 | 0.96 | 1.4 | φ3.4 | ≤0.6 | ≥55 | 5.9±0.3 | ||
| 980 | 1000 | ±20 | 1.48 | 0.87 | φ4.0 | ≤0.9 | ≥55 | 5.9±0.3 | ||
| 1064 | 100 | ±20 | 0.37 | 3.3 | φ3.4 | ≤0.5 | ≥55 | 6.2±0.3 | 980HP/Hi1060 | |
| 1064 | 300 | ±20 | 0.99 | 1.4 | φ3.4 | ≤0.6 | ≥55 | 6.2±0.3 | ||
| 1064 | 1000 | ±20 | 1.53 | 0.87 | φ4.0 | ≤0.9 | ≥55 | 6.2±0.3 | ||
| 1310 | 100 | ±20 | 0.38 | 4.4 | φ3.4 | <0.4 | ≥55 | 9.6±0.4 | Smf-28e G657A1 G657A2 ZBL |
|
| 1310 | 300 | ±20 | 0.73 | 2.3 | φ3.4 | ≤0.5 | ≥55 | 9.6±0.4 | ||
| 1310 | 1000 | ±20 | 0.91 | 1.9 | φ4.0 | ≤0.7 | ≥55 | 9.6±0.4 | ||
| 1550 | 100 | ±20 | 0.46 | 4.5 | φ3.4 | ≤0.4 | ≥55 | 10.4±0.5 | ||
| 1550 | 300 | ±20 | 0.85 | 2.4 | φ3.4 | ≤0.5 | ≥55 | 10.4±0.5 | ||
| 1550 | 1000 | ±20 | 1.35 | 1.7 | φ4.0 | ≤0.7 | ≥55 | 10.4±0.5 | ||
| 1650 | 100 | ±5 | 0.47 | 4.5 | φ3.4 | <0.4 | ≥55 | 10.9±0.5 | ||
| 1650 | 300 | ±5 | 0.89 | 2.4 | φ3.4 | ≤0.5 | ≥55 | 10.9±0.5 | ||
| 1650 | 1000 | ±5 | 1.22 | 1.7 | φ4.0 | ≤0.7 | ≥55 | 10.9±0.5 |
| λ (nm) | WD (mm) | Band width (nm) | Output beam Size (mm) | Div. (mrad) | Dia. (mm) | Insert Loss (dB) | Return Loss (dB) | ModeField Dia. (μm) | Fiber Type | Connector |
| 780 | 0-350 | ±20 | 0.9 | 0.95 | φ3.4 | ≤0.8 | ≥55 | 4.5±0.5 | 780HP | FC/PC FC/APC LC/PC Or Customer specified |
| 850 | 0-350 | ±20 | 1 | 1.05 | φ3.4 | ≤0.8 | ≥55 | 5.0±0.5 | ||
| 980 | 0-350 | ±20 | 0.99 | 1.26 | φ3.4 | ≤0.7 | ≥55 | 5.9±0.3 | Hi1061 | |
| 980 | 50-1000 | ±20 | 1.54 | 0.81 | φ4.0 | ≤0 9 | ≥55 | 5.9±0.3 | ||
| 1064 | 0-350 | ±20 | 1 | 1.35 | φ3.4 | ≤0.7 | ≥55 | 6.2±0.3 | ||
| 1064 | 50-1000 | ±20 | 1.6 | 0.85 | φ4.0 | ≤0.9 | ≥55 | 6.2±0.3 | ||
| 1310 | 0-350 | ±20 | 0.81 | 2.06 | φ3.4 | <0.7 | ≥55 | 9.6±0.4 | Smf-28e G657A1 G657A2 ZBL |
|
| 1310 | 50-1000 | ±20 | 1.3 | 1.31 | φ4.0 | ≤0.9 | >55 | 9.6±0.4 | ||
| 1550 | 0-350 | ±20 | 0.9 | 2.15 | φ3.4 | ≤0.7 | ≥55 | 10.4±0.5 | ||
| 1550 | 50-1000 | ±20 | 1.45 | 1.36 | φ4.0 | ≤0.9 | >55 | 10.4±0.5 | ||
| 1650 | 0-350 | ±20 | 0.96 | 2.19 | φ3.4 | <0.7 | ≥55 | 10.9±0.5 | ||
| 1650 | 50-1000 | ±20 | 1.5 | 1.4 | φ4.0 | ≤0.9 | >55 | 10.9±0.5 |
| Specified WD Collimators | Wide WD range Collimators | |
| Working distance | <1m (Set in factory) | 0~1m |
| Beam Spot Size | Minimμm spot at specified distance | Changes little in WD range |
| Insert Loss | Sensitive to working distance | Changes little in WD range |
