| LDMXXX-A-B-C-D-E: XXX – wavelength(nm), A – Power(mW), B – Diameter (mm), C – Length(mm), D – Lens Material(glass or plastic), E – Beam Pattern | |||||||||
| Part Number | Package Type | Beam Shape |
Wavelength (nm) |
Power (mW) | Diameter (mm) |
Length (mm) |
Lens Material |
Features | Picture |

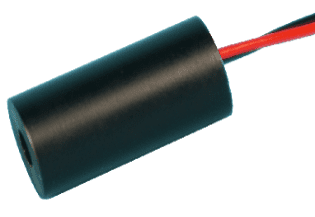

| LDM635-A-9-19-G-1-10 | Model 1 | dot | 635 | <1, <3 | 9 | 19 | Glass | • One-piece metal housing • Compact size • Low cost • PCB sealed and protected by epoxy • Robust structure, shock resistance. |
 |
| LDM650-A-9-19-G-1-10 | dot | 650 | <1, <3 | 9 | 19 | Glass | |||
| dot | 650 | <7 | 9 | 19 | Glass | ||||
| LDM850-A-9-19-G-1-13 | dot | 850 | <1, <3, <7 | 9 | 19 | Glass | |||
| LDM6XX-A-B-21-G-2-1 | Line | 635, 650 | <1, <3, <7 | 9 | 21 | Glass | |||
| LDM450-A-9-39-G-1-26 | Model 2 | dot | 450 | <1, 5, 80 | 9 | 39 | Glass | • One-piece metal housing |  |
| LDM520-A-9-39-G-1-26 | dot | 520 | <1, <5 | 9 | 39 | Glass | |||
| dot | 520 | <80 | 9 | 39 | Glass | ||||
| LDM635-A-9-39-G-1-20 | dot | 635 | <1, <3 | 9 | 39 | Glass | |||
| LDM650-A-9-39-G-1-20 | dot | 650 | <1, <3 | 9 | 39 | Glass | |||
| dot | 650 | <7 | 9 | 39 | Glass | ||||
| LDM850-A-9-39-G-1-23 | dot | 850 | <1, <3 | 9 | 39 | Glass | |||
| LDM450-A-B-29-G-1-36 | Model 3 | dot | 450 | <1, 5, 80 | 7.6, 9 | 29 | Glass | • Compact size • Full metal jacket |
 |
| LDM520-A-B-29-G-1-36 | dot | 520 | <1, <5 | 7.6, 9 | 29 | Glass | |||
| dot | 520 | <80 | 7.6, 9 | 29 | Glass | ||||
| LDM635-A-B-45-G-1-30 | dot | 635 | <1, <3 | 7.6, 9 | 45 | Glass | |||
| LDM650-A-B-45-G-1-30 | dot | 650 | <1, <3 | 7.6, 9 | 45 | Glass | |||
| dot | 650 | <7 | 7.6, 9 | 29 | Glass | ||||
| LDM850-A-B-29-G-1-33 | dot | 850 | <1, <3 | 7.6, 9 | 29 | Glass | |||
| LDM635-5-9-24-P-1-4 | Model 4 | dot | 635 | <1, <3 | 9(10, 12) | 24 | Plastic | • Auto current control (APC) driver. • Ultra-low cost • Full metal jacket • PCB sealed and protected by epoxy • Robust structure, shock resistance. • Function option: APC, ACC, TTL, Power adjusted by input signal. • Available wavelength: 635nm, 650nm, 830nm, 850nm |
 |
| LDM635-5-9-26-G-1-4 | 26 | G Aspherical | |||||||
| LDM635-5-9-28-G-1-4 | 28 | G Spherical | |||||||
| LDM650-5-9-24-P-1-4 | 650 | <1, <3 | 24 | Plastic | |||||
| LDM650-5-9-26-G-1-4 | 26 | G Aspherical | |||||||
| LDM650-5-9-28-G-1-4 | 28 | G Spherical | |||||||
| LDM650-10-9-26-G-1-4 | <7 | 26 | Glass | ||||||
| LDM635-5-10-26-P-2-4 | line | 635 | <1, <3 | 10(12) | 26 | Plastic | |||
| LDM635-5-10-28-G-2-4 | 28 | G Aspherical | |||||||
| LDM635-5-10-30-G-2-4 | 30 | G Spherical | |||||||
| LDM650-5-10-26-P-2-4 | 650 | <1, <3 | 26 | Plastic | |||||
| LDM650-5-10-28-G-2-4 | 28 | G Aspherical | |||||||
| LDM650-5-10-30-G-2-4 | 30 | G Spherical | |||||||

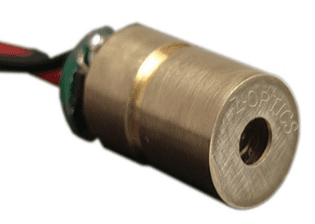

| LDM635-A-B-C-P-1-62 | Model 6 | dot | 635 | <1, 3 | 6, 7, 8 | 13, 17, 20 | Plastic | • Ultra low cost • Ultra compact size • PCB protected by PVC tube or exposed • Focus fixed or adjustable |
 |
| LDM650-A-4-13-P-1-62 | dot | 650 | <1, 3 | 4 | 13 | Plastic | |||
| LDM650-A-B-C-P-1-62 | dot | 650 | <1, 3 | 6, 7, 8 | 13, 17, 20 | Plastic | |||

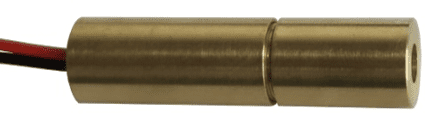

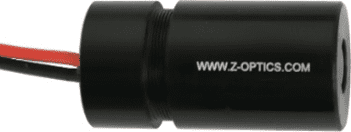

| LDM450-A-B-C-G-1A-96 (1m~inf.) | Model 9 | dot | 450 | <1, 5, 80 | 7.6, 9, 12 | >30, >40 | Glass | • Focus adjustable, 2cm~infinity or upon request. • Full metal jacket |
|
| LDM520-A-B-C-G-1A-96 (1m~inf.) | dot | 520 | <1, <5 | 7.6, 9, 12 | >30, >40 | Glass | |||
| dot | 520 | <80 | 7.6, 9, 12 | >30, >40 | Glass | ||||
| LDM635-A-12-V-G-1A-90 (40mm~inf.) | dot | 635 | <1, <3 | 12 | 33~36 | Glass | |||
| LDM635-A-B-C-G-1A-90 (1m~inf.) | dot | 635 | <1, <3 | 7.6, 9, 12 | >30, >40 | Glass | |||
| LDM650-A-B-C-G-1A-90 (1m~inf.) | dot | 650 | <1, <3 | 7.6, 9, 12 | >30, >40 | Glass | |||
| dot | 650 | <7 | 7.6, 9, 12 | >30, >40 | Glass | ||||
| LDM850-A-B-C-G-1A-93 (1m~inf.) | dot | 850 | <1, <3 | 7.6, 9, 12 | >30, >40 | Glass | |||

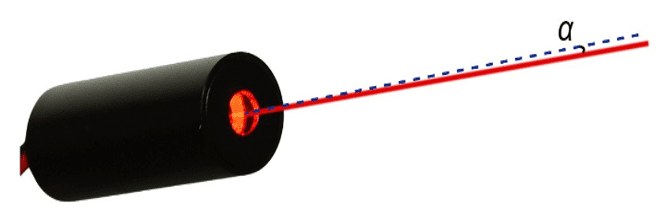

| LDM450-A-9-40-G-1-A6-5 *5 means +/-5 mrad | Model A | dot | 450 | <1, 5, 80 | 9 | 40 | Glass | • Small off-Boresight angle/concentricity/precision laser module for high accuracy alignment |  |
| LDM450-A-9-40-G-1-A6-R5 *R5 means +/-0.5 mrad | |||||||||
| LDM520-A-9-40-G-1-A6-5 | dot | 520 | <1, <5 | 9 | 40 | Glass | |||
| LDM520-A-9-40-G-1-A6-R5 | |||||||||
| LDM635-A-9-40-G-1-A0-5 | dot | 635 | <1, <3 | 9 | 40 | Glass | |||
| LDM635-A-9-40-G-1-A0-R5 | |||||||||
| LDM850-A-9-40-G-1-A3-5 | dot | 850 | <1, <3 | 9 | 40 | Glass | |||
| LDM850-A-9-40-G-1-A3-R5 | |||||||||
| LDM1064-A-9-40-G-1-A-R5 | dot | 1064 | <1, <3, <50 | 9 | 40 | Glass | |||
| LDM1XXX-1-9-40-G-1-A-R5 | dot | 1310, 1550 | <1 | – | – | Glass | |||

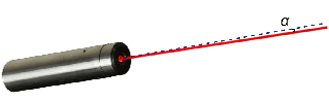

| LDPXXX-A-B-C-5 | Alignment Laser Pointer | dot | 405~1610nm | <1, <5, <80 | 18 | 108 | Glass |  |
|
| LDPXXX-A-B-C-R5 | |||||||||
| LDMXXX-A-B-35-G-2A-U | Model U | line | 450~650nm | – | 12, 13 | 34~37 | Glass | • Focus adjustable, Line keeps the direction |  |
| LDM650-3-B-35-G-2A-U | line | 650 | <3 | 12, 13 | 34~37 | Glass | |||
Note:
1. Plastic lens is about USD0.4 cheaper than a glass lens, but beam spot size after it changes upon temperature. That means it’s different in winter and summer, even after turned on and heated up for 5 minutes.
2. Most laser modules in the catalogue can operate in APC(auto power control), ACC(auto current control), pulse and TTL mode upon request of customers.
